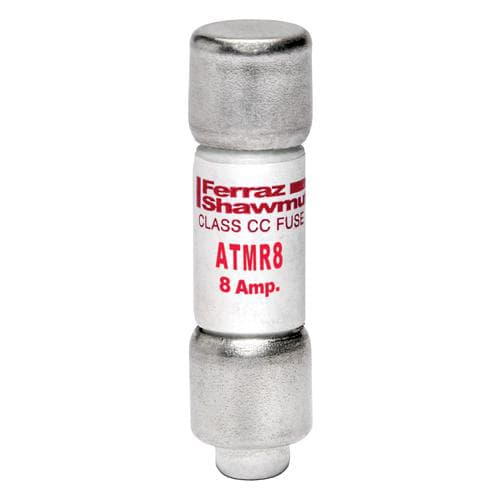

Ferraz Shawmut - Mersen ATMR8 Class CC / Fast-Acting Amp-Trap ATMR Fuse - 8amp. Rated 600 volts AC / DC
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782001904517
Amperage - 8 Amp
Applications - For Control Circuits, Lighting, General Loads
Catalog Number - ATMR8
Class - CC
Packaging
1 ea
EAN
30782001904518
Part #
158125
Catalog #
ATMR8
Commercial reference
ATMR8
12-Digit UPC:
782001904517
Amperage:
8 Amp
Applications:
For Control Circuits, Lighting, General Loads
Catalog Number:
ATMR8
Class:
CC
Construction:
Fiberglass
ERP_productname:
FRZ ATMR8 600V SPCL PURP FUSE
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Fuse Class:
Class CC
Interrupt Rating:
200 kAIC
Length:
1-1/2 Inch
Mounting Type:
Clip
Rated Voltage AC:
600 V
Rated Voltage DC:
600 V
Tc Connection:
Ferrule
Type:
North American Power Fuses
Voltage:
600 VAC
SoneparProductId:
SKU_US_59161873
Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits. Features: Rejection-style design prevents replacement errors when used with recommended fuse blocks; Versatile design for individual component and branch circuit protection - Applications: Control circuits; Lighting; General loads; Branch circuit protection - Approvals & Standards: UL Listed to Standard 248-4 File E2137; CSA Certified to Standard C22.2 No. 248.4; DC listed to UL Standard 248
