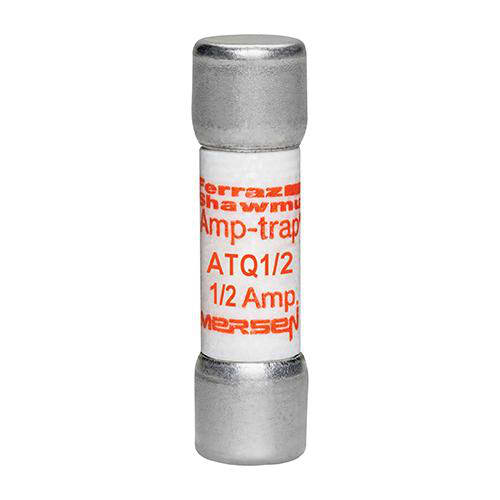

Ferraz Shawmut - Mersen ATQ1/2 Time-Delay Amp-Trap ATQ Midget Fuse - 1/2amp. Rated 500 volts AC

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 782001902667

  • Amperage - 0.5 Amp

  • Applications - For Supplemental Protection of Lighting, Solenoid, Motor and Transformer Circuits

  • Catalog Number - ATQ1/2

  • Class - M

Packaging

  • 1 ea

EAN

30782001902668

Part #

159021

Catalog #

ATQ1/2

Commercial reference

ATQ1/2

12-Digit UPC:

782001902667

Amperage:

0.5 Amp

Applications:

For Supplemental Protection of Lighting, Solenoid, Motor and Transformer Circuits

Catalog Number:

ATQ1/2

Class:

M

ERP_productname:

FRZ ATQ1/2 500V TD MIDGET FUSE

Family Brand Name:

Ferraz Shawmut Canada, Inc.

Fuse Class:

Midget

Interrupt Rating:

10 kAIC

Length:

1-1/2 Inch

Mounting Type:

Clip

Rated Voltage AC:

500 V

Tc Connection:

Ferrule

Type:

Time-Delay

Voltage:

500 VAC

SoneparProductId:

SKU_US_58282729

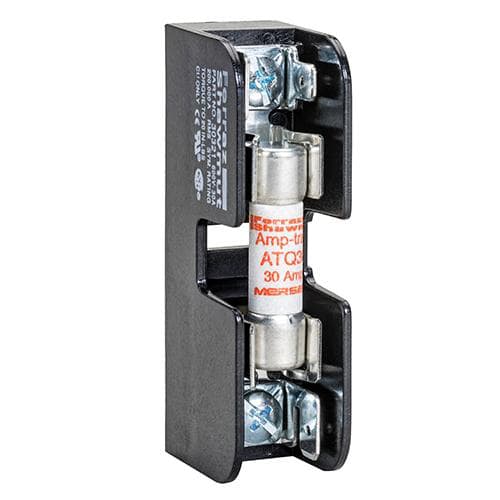

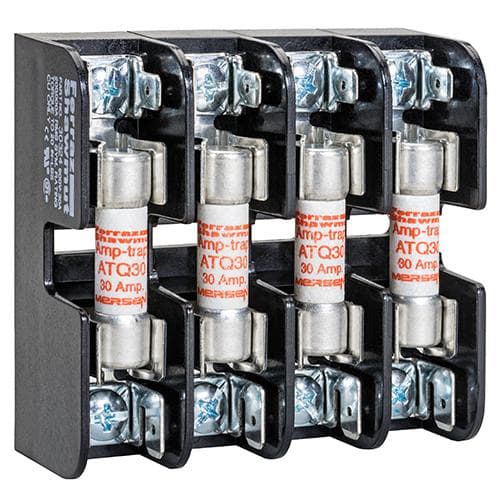

Amp-Trap ATQ midget time-delay fuses are rated 500VAC with 42 ampere ratings from 1/10 to 30A. They are an excellent choice for supplemental protection of circuits where the available short circuit current does not exceed 10,000A. (Not for Branch Circuit Protection) Features: Numerous ratings for a wide variety of applications up to 500VAC; Time-delay (12 seconds at 200 percent rating) for circuits with high inrush current; Can be used with UltraSafe™ Fuse holders; 1 1/2\" x 13/32\" (10 mm x 38 mm) dimensions - Applications: Supplemental protection of lighting, solenoid, motor and transformer circuits - Approvals & Standards: UL listed to standard 248-14 File E33925; CSA Certified to Standard C22.2 No. 248.14
