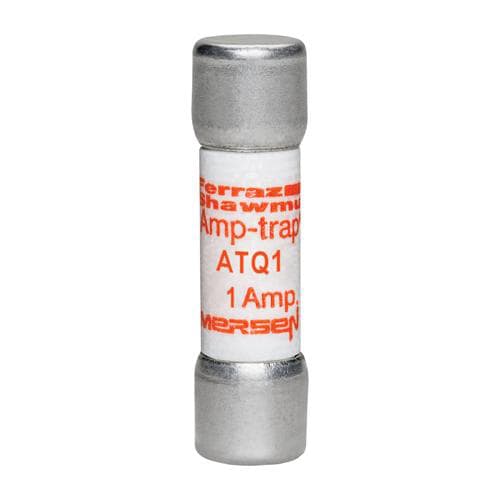

Ferraz Shawmut - Mersen ATQ1 Time-Delay Amp-Trap ATQ Midget Fuse - 1amp. Rated 500 volts AC
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782001903480
Amperage - 1 Amp
Applications - For Supplemental Protection of Lighting, Solenoid, Motor and Transformer Circuits
Catalog Number - ATQ1
Class - M
Packaging
1 ea
EAN
30782001903481
Part #
158990
Catalog #
ATQ1
Commercial reference
ATQ1
12-Digit UPC:
782001903480
Amperage:
1 Amp
Applications:
For Supplemental Protection of Lighting, Solenoid, Motor and Transformer Circuits
Catalog Number:
ATQ1
Class:
M
ERP_productname:
FRZ ATQ1 500V TD MIDGET FUSE
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Fuse Class:
Midget
Interrupt Rating:
10 kAIC
Length:
1-1/2 Inch
Mounting Type:
Clip
Rated Voltage AC:
500 V
Tc Connection:
Ferrule
Type:
Time-Delay
Voltage:
500 VAC
SoneparProductId:
SKU_US_58141065
Amp-Trap ATQ midget time-delay fuses are rated 500VAC with 42 ampere ratings from 1/10 to 30A. They are an excellent choice for supplemental protection of circuits where the available short circuit current does not exceed 10,000A. (Not for Branch Circuit Protection) Features: Numerous ratings for a wide variety of applications up to 500VAC; Time-delay (12 seconds at 200 percent rating) for circuits with high inrush current; Can be used with UltraSafe™ Fuse holders; 1 1/2\" x 13/32\" (10 mm x 38 mm) dimensions - Applications: Supplemental protection of lighting, solenoid, motor and transformer circuits - Approvals & Standards: UL listed to standard 248-14 File E33925; CSA Certified to Standard C22.2 No. 248.14
