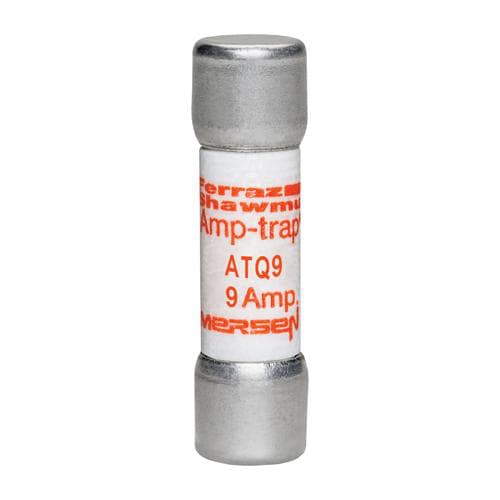

Ferraz Shawmut - Mersen ATQ9 9 Amp 500 Volt Glass Melamine Laminated Time Delay Midget Fuse
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782001904326
Amperage - 9 Amp
Applications - Supplemental Protection of Lighting, Solenoid, Motor and Transformer Circuits
Catalog Number - ATQ9
Class - M
Packaging
1 ea
EAN
30782001904327
Part #
225210
Catalog #
ATQ9
Commercial reference
ATQ9
12-Digit UPC:
782001904326
Amperage:
9 Amp
Applications:
Supplemental Protection of Lighting, Solenoid, Motor and Transformer Circuits
Catalog Number:
ATQ9
Class:
M
ERP_productname:
FRZ ATQ9 500V 9A TD MIDGET FUSE
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Fuse Class:
Midget
Interrupt Rating:
10 kAIC
Length:
1-1/2 Inch
Mounting Type:
Clip
Rated Voltage AC:
500 V
Tc Connection:
Ferrule
Type:
Time Delay
Voltage:
500 VAC
SoneparProductId:
SKU_US_59168969
Amp-Trap ATQ midget time-delay fuses are rated 500VAC with 42 ampere ratings from 1/10 to 30A. They are an excellent choice for supplemental protection of circuits where the available short circuit current does not exceed 10,000A. (Not for Branch Circuit Protection) Features: Numerous ratings for a wide variety of applications up to 500VAC; Time-delay (12 seconds at 200 percent rating) for circuits with high inrush current; Can be used with UltraSafe™ Fuse holders; 1 1/2\" x 13/32\" (10 mm x 38 mm) dimensions - Applications: Supplemental protection of lighting, solenoid, motor and transformer circuits - Approvals & Standards: UL listed to standard 248-14 File E33925; CSA Certified to Standard C22.2 No. 248.14
