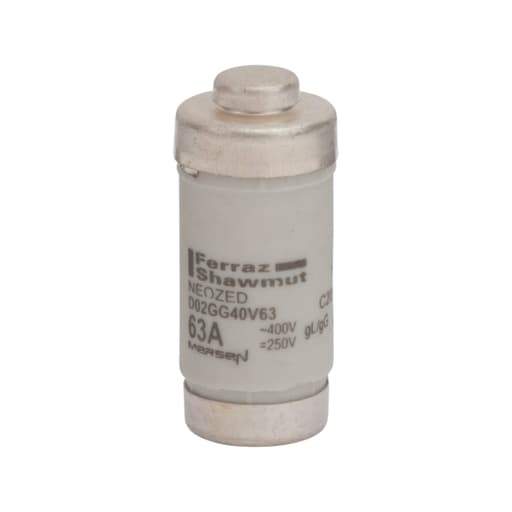

Ferraz Shawmut - Mersen C201873 D02-SICH.EINSATZ 63A

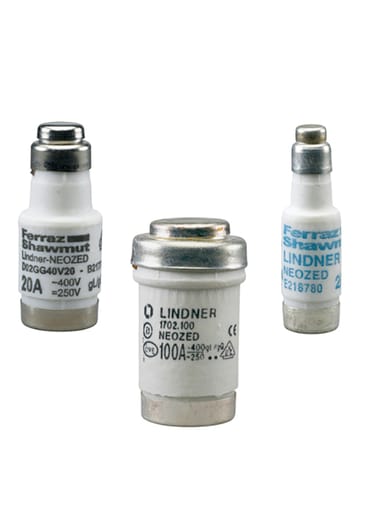

The D0 fuse-system is installed in low voltage distribution units, where fuse-links are accessible to non trained persons and can also be replaced by them.The system is the most modern of the screw systems and designed for 400VAC/250VDC networks.The D0 fuse range comprises the standardized fuse sizes D01, D02 and D03.The range of applications for D0 fuse-links for general application is the protection of cables and power lines. They limit and cut off unacceptable overcurrents and short circuit currents up to their nominal breaking capacity. D0 fuse-links "gG" also protect equipments and installations against dynamic effects of high short circuit currents. Features: Insulated body suitable for high mechanical and thermal impacts; Top and bottom contacts made of nickel plated or silver plated copper alloy; Safe cut-off short circuits and over currents due to special design of fuse element; Clear indication of operation condition due to coloured indicator un top contact; Low power dissipation; Optimized size; Resistant to aging - Certifications: DIN VDE 0636-3
