Ferraz Shawmut - Mersen CEP-FS30CC1 UL 98 Fusible Sw

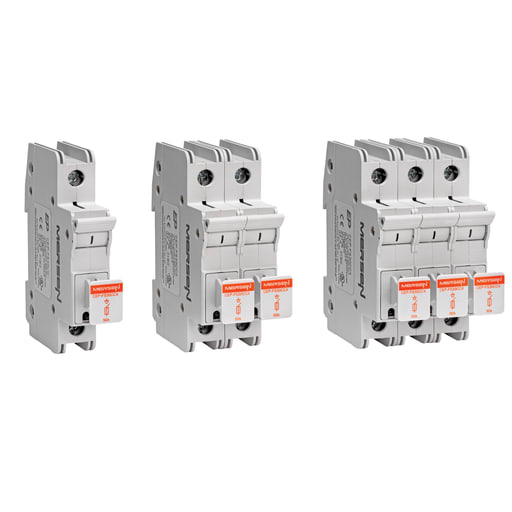

Mersen.s Compact Fused Disconnect incorporates the switch functionality with the high protection level of a fuse. The switch accepts UL class CC fuses up to 30A. In addition to this, the Compact Fused Disconnect is UL 98 listed and suitable for use as main/feeder device and, in conjunction with CC fuses, is rated for branch circuit protection. It has a smaller footprint compared to a traditional Class CC disconnect with a max interrupting rating of 200kA. The compact form factor and ease of installation makes it a great choice for panel builders. The easy lockout/tagout feature and IP20 rating ensures additional safety along with the built in switch capability. Features: 30A Fused disconnect; UL Listed; Smaller footprint compared to a traditional Class CC disconnect; Accepts Class CC 30A fuses; 35mm DIN rail mounted; Built-in lockout/tagout feature; 200kA SCCR rating; 75±C CU Wire - Certifications: cULus Listed file No. E191605; UL 98 - Open type switches; CSA C22.2 No.4 - enclosed and deadfront switches; IEC 60529 degree of protection IP20
