Ferraz Shawmut - Mersen CP500C5 600V CABLE PROTECTOR
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782001931940
Applications - Multiple cables in a run, underground cables
Catalog Number - CP500C5
Country of Origin - Mexico
ERP_productname - FRZ CP500C5 CABLE FUSE 600V 500MCM C5
Packaging
1 ea
EAN
10782001931947
Part #
144889
Catalog #
CP500C5
Commercial reference
CP500C5
12-Digit UPC:
782001931940
Applications:
Multiple cables in a run, underground cables
Catalog Number:
CP500C5
Country of Origin:
Mexico
ERP_productname:
FRZ CP500C5 CABLE FUSE 600V 500MCM C5
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Interrupt Rating:
200 kAIC
Length:
10.37 Inch
Mounting Type:
Bolted
Rated Voltage AC:
600 V
Tc Connection:
Blade To Blade
Type:
Cable Protector
Voltage:
600 Volt
SoneparProductId:
SKU_US_72079577

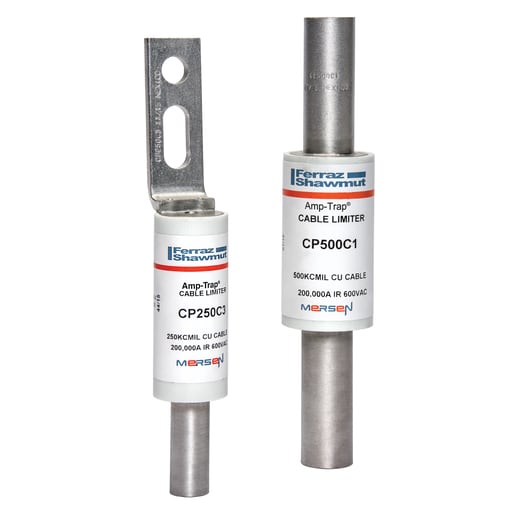

Mersen CP cable protectors are special purpose limiters which are crimped or bolted to cables to clear and isolate faults quickly, increasing the reliability of service entrance and distribution runs. They are current-limiting with a 200,000A interrupting rating, yet will carry low cable overloads which are handled by standard protective devices. Cable protectors are rated in terms of cable size and material (Al or Cu). Heat shrinkable (HS) tubing can be specified for field installation. For cables smaller than 4/0, class J fuses can be used. Features: Fiberglass bodies for dimensional stability in harsh environments; Catalog number stamped into terminal for permanent identification; Crimp terminals for aluminum cable include oxide inhibitor; Molded rubber boots or heat shrinkable tubing available for insulation and protection; Current limiting device; Permitted by National Electrical Code® - Certifications: UL listed to File E305297
