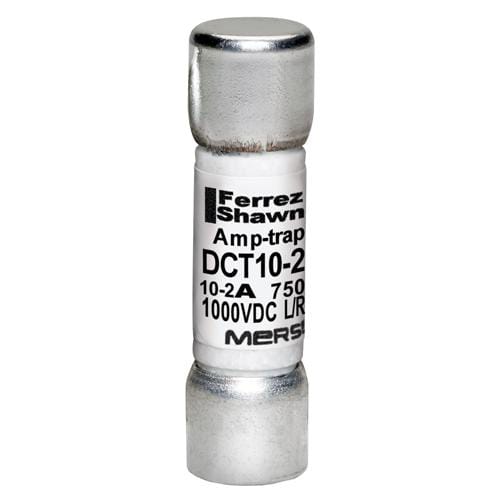

Ferraz Shawmut - Mersen DCT10-2 1000VDC/10A
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782001352455
Amperage - 10 Amp
Applications - Multi meters; 690V Transformers; DC Traction Equipment
Catalog Number - DCT10-2
Class - M
Packaging
1 ea
EAN
30782001352456
Part #
113832
Catalog #
DCT10-2
Commercial reference
DCT10-2
12-Digit UPC:
782001352455
Amperage:
10 Amp
Applications:
Multi meters; 690V Transformers; DC Traction Equipment
Catalog Number:
DCT10-2
Class:
M
ERP_productname:
FRZ DCT10-2 1000VDC/10A
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Fuse Class:
Midget
Interrupt Rating:
100 kAIC
Length:
1-1/2 Inch
Mounting Type:
Clip
Rated Voltage AC:
750 V
Rated Voltage DC:
1000 V
Type:
Supplemental Protection
Voltage:
750 VAC
SoneparProductId:
SKU_US_72347299
Amp-Trap DCT fuses were developed to meet requirements coming from new applications such as protection of photovoltaic cells, multi meters and compact on board traction equipment for auxiliary circuits. This high performance DC fuse in its compact size offers multiple competitive advantages particularly for international applications where DC voltage requirements are above 600VDC. Features: Low minimum breaking capacity (MBC); Compact size: 10 x 38 mm (13/32\" x 1-1/2\") size internationally accepted; Ferrule mount 1 to 30A for design versatility; Can be used with UltraSafeTM fuse holders USM series; 1 1/2\" x 13/32\" (10 mm x 38 mm) dimensions - Applications: DC traction equipment; Multi-meters; Photovoltaic systems; Semiconductor protection - Approvals & Standards: UL Recognized component File E60314
