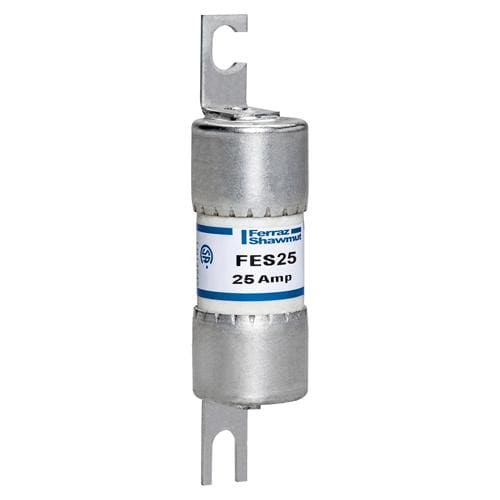

Ferraz Shawmut - Mersen FES25 FUSECLASS C FORM II
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 068938904036
Amperage - 25 Amp
Applications - For Short Circuit and Back-Up Protection of Motor Controllers and Components
Catalog Number - FES25
Class - C
Packaging
1 ea
EAN
30068938904037
Part #
197692
Catalog #
FES25
Commercial reference
FES25
12-Digit UPC:
068938904036
Amperage:
25 Amp
Applications:
For Short Circuit and Back-Up Protection of Motor Controllers and Components
Catalog Number:
FES25
Class:
C
ERP_productname:
FRZ FES25 FUSECLASS C FORM II
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Fuse Class:
Class C
Interrupt Rating:
200 kAIC
Length:
3.31 Inch
Mounting Type:
Bolt-On
Rated Voltage AC:
600 V
Rated Voltage DC:
460 V
Type:
Canadian
Voltage:
600 VAC
SoneparProductId:
SKU_US_181619244
Ferraz Shawmut Class C fuses have British standard (BS88) dimensions and are exact replacements for the British fuses and older HRCII-C fuses. Class C fuses are not dimensionally or electrically interchangeable with other North American fuses. They feature ceramic bodies and bolt-in mounting. They are for short-circuit protection only, in motor controllers, for example, where overload protection is provided by an overload relay. Features: BS88 dimensions; Fast-acting - Applications: Short circuit and back-up protection of motor controllers and components - Approvals & Standards: CSA Certified HRCII-MISC; IEC 269-2-1
