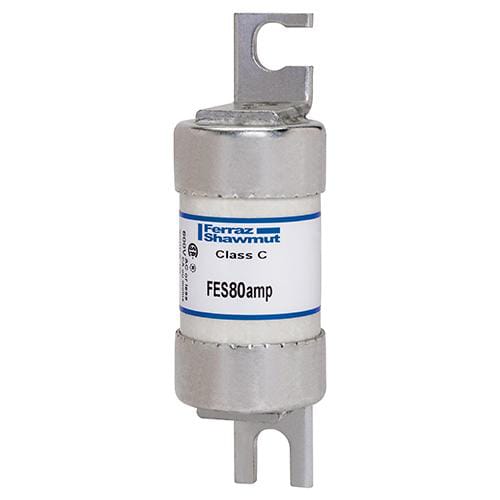

Ferraz Shawmut - Mersen FES80 FUSECLASS C FORM II
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 068938904227
Amperage - 80 Amp
Applications - For Short Circuit and Back-Up Protection of Motor Controllers and Components
Catalog Number - FES80
Class - C
Packaging
1 ea
EAN
30068938904228
Part #
219001
Catalog #
FES80
Commercial reference
FES80
12-Digit UPC:
068938904227
Amperage:
80 Amp
Applications:
For Short Circuit and Back-Up Protection of Motor Controllers and Components
Catalog Number:
FES80
Class:
C
ERP_productname:
FRZ FES80 FUSE CLASS C FORM II
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Fuse Class:
Class C
Interrupt Rating:
200 kAIC
Length:
4.31 Inch
Mounting Type:
Bolt-On
Rated Voltage AC:
600 V
Rated Voltage DC:
350 V
Type:
Canadian
Voltage:
600 VAC
SoneparProductId:
SKU_US_126570818
Ferraz Shawmut Class C fuses have British standard (BS88) dimensions and are exact replacements for the British fuses and older HRCII-C fuses. Class C fuses are not dimensionally or electrically interchangeable with other North American fuses. They feature ceramic bodies and bolt-in mounting. They are for short-circuit protection only, in motor controllers, for example, where overload protection is provided by an overload relay. Features: BS88 dimensions; Fast-acting - Applications: Short circuit and back-up protection of motor controllers and components - Approvals & Standards: CSA Certified HRCII-MISC; IEC 269-2-1
