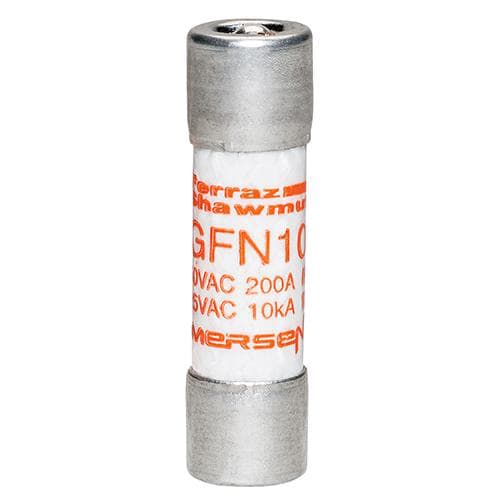

Ferraz Shawmut - Mersen GFN10 76743- FUSE 250V 10A 1

GFN midget indicating fuses are available in 34 ratings from 1/10A through 30A. These time-delay fuses have built-in blown fuse indicators which pop out at the end of the fuse to visually indicate when the fuse has operated. Indicators may be used to trip a switch for remote as well as visual indication. (Not for Branch Circuit Protection). Features: Pin indicator provides visual indication of open fuse or actuates switch for remote signaling; Numerous ratings for a wide variety of applications; 12 second time-delay at 200% rating; Can be used with UltraSafe™ fuse holders (1/10 - 10A); 1 1/2\" x 13/32\" (10 mm x 38 mm) dimensions - Applications: For supplemental protection of circuits where time-delay and blown fuse indication are required, such as solenoid circuits or control circuits. - Approvals & Standards: UL Listed to standard 248-14 (1/10 to 15A) File E33925; CSA Certified to Standard C22.2 No. 248.14 (1/10 to 15A)
