Ferraz Shawmut - Mersen GGU5 125V 5A 1-1/2X13/32 FUS
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782001765057
Amperage - 5 Amp
Applications - General Purpose 125VAC Circuits Supplemental Protection
Catalog Number - GGU5
Class - M
Packaging
1 ea
EAN
00782001765057
Part #
175874
Catalog #
GGU5
Commercial reference
GGU5
12-Digit UPC:
782001765057
Amperage:
5 Amp
Applications:
General Purpose 125VAC Circuits Supplemental Protection
Catalog Number:
GGU5
Class:
M
Construction:
Ceramic
ERP_productname:
FRZ GGU5 FUSE
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Fuse Class:
Class M
Interrupt Rating:
10 kAIC
Length:
1-1/2 Inch
Mounting Type:
Clip
Rated Voltage AC:
125 V
Tc Connection:
Ferrule
Type:
Fast-Acting
Voltage:
125 VAC
SoneparProductId:
SKU_US_72356884

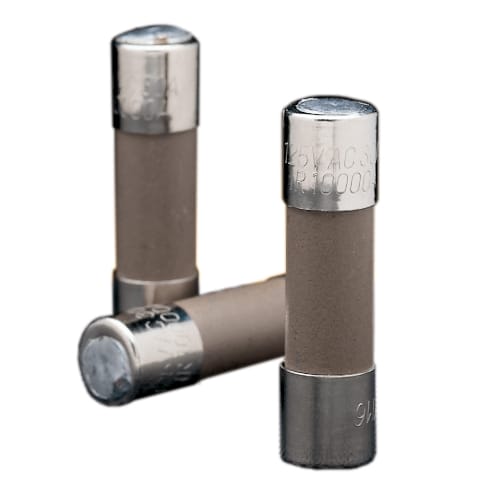

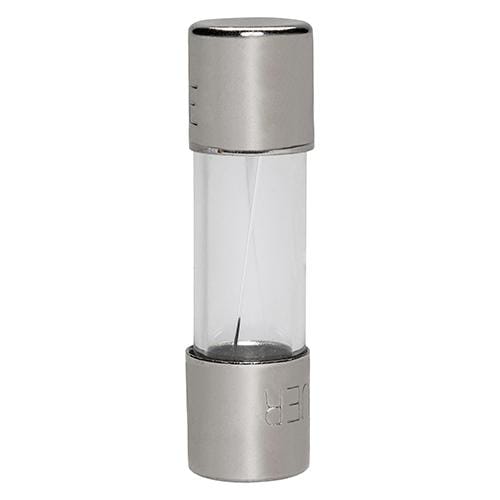

125VAC rated GGU fuses have midget fuse dimensions (1-1/2" x 13/32"). 20A and above have ceramic bodies, allowing use in higher ambient temperature conditions than other similar fuses. (Not for Branch Circuit Protection). Features: Glass body on 1-15A makes status of fusible element clearly visible; Ceramic body on 20-30A allows use in higher temperature applications; Medium lag for protection of circuits up to 30A and 125VAC; Can be used with UltraSafe™ fuse holders (1-30A); 1 1/2\" x 13/32\" (10 mm x 38 mm) dimensions - Applications: General Purpose; 125VAC Circuits; Supplemental Protection - Approvals & Standards: UL Listed 1-15A; UL Recognized 20-30A
