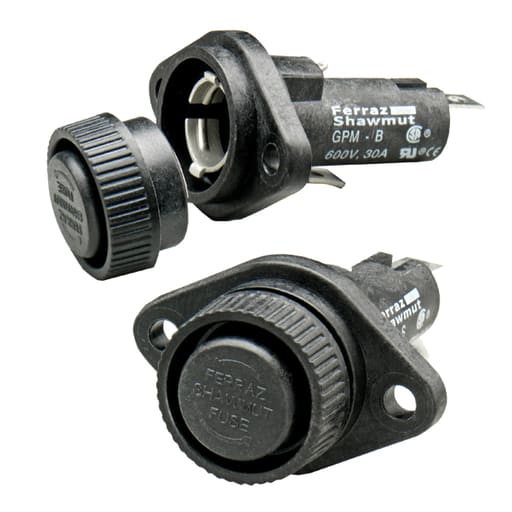

Ferraz Shawmut - Mersen GPM-S 600v 30amp Panel Mount Fuse Holder. Use with 1-1/2" x 13/32" Fuses
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782001674304
Amperage - 30 Amp
Catalog Number - GPM-S
Class - M
Country of Origin - Mexico
Packaging
1 ea
EAN
00782001674304
Part #
172090
Catalog #
GPM-S
Commercial reference
GPM-S
12-Digit UPC:
782001674304
Amperage:
30 Amp
Catalog Number:
GPM-S
Class:
M
Country of Origin:
Mexico
ERP_productname:
FRZ GPM-S 30A FUSE HOLDER
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Fuse Class:
Midget
Heights:
1.13 Inch
Length:
2.42 Inch
Mounting Type:
Panel Mount
Number of Poles:
1 Pole
Rated Voltage AC:
600 V
Rated Voltage DC:
600 V
Tc Connection:
1/4" Quick Connect / Solder
Type:
Panel Mount
Voltage:
600 Volt
Widths:
1.13 in
SoneparProductId:
SKU_US_51986047
Mersen GPM Panel Mount Fuse Holders are in sizes to acco mmodate 5x20 mm, 1/4"x1-1/4", Class CC and Midget (1-1/2"x13/32") fuses. All 30A holders have glass-filled polyester insulators for extra dependability and trouble-free installation. Patented design allows same body to accept screw or bayonet knob. Flange design allows front or rear mounting. The 10A and 15A holders are for front mounting only. Features: Patented design allows same body to accept screw or bayonet knob; Flange design allows front or rear mounting. - Certifications: UL Recognized, guide IZLT2, File E52283; CSA Certified - C22.2, class 6225, File 32169
