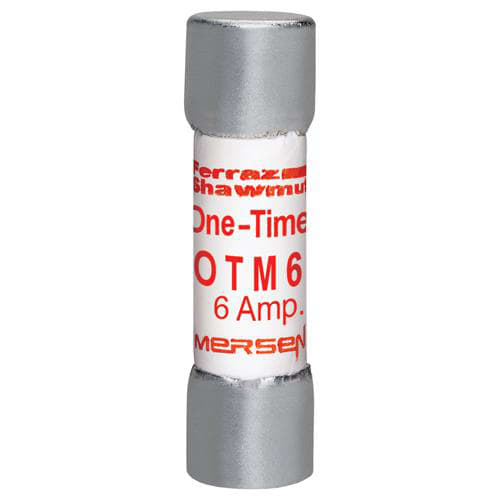

Ferraz Shawmut - Mersen OTM6 13/32 x 1-1/2 Inch 6 Amp 250 Volt Fast Acting Midget Fuse
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782001705060
Amperage - 6 Amp
Applications - For Supplemental Protection of Circuits up to 250 VAC and 10 kA
Catalog Number - OTM6
Class - M
Packaging
1 ea
EAN
30782001705061
Part #
173867
Catalog #
OTM6
Commercial reference
OTM6
12-Digit UPC:
782001705060
Amperage:
6 Amp
Applications:
For Supplemental Protection of Circuits up to 250 VAC and 10 kA
Catalog Number:
OTM6
Class:
M
ERP_productname:
FRZ OTM6 250V MIDGET FUSE
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Fuse Class:
Midget
Interrupt Rating:
10 kAIC
Length:
1-1/2 Inch
Mounting Type:
Clip
Rated Voltage AC:
250 V
Tc Connection:
Ferrule
Type:
Supplemental Protection
Voltage:
250 VAC
SoneparProductId:
SKU_US_58861962

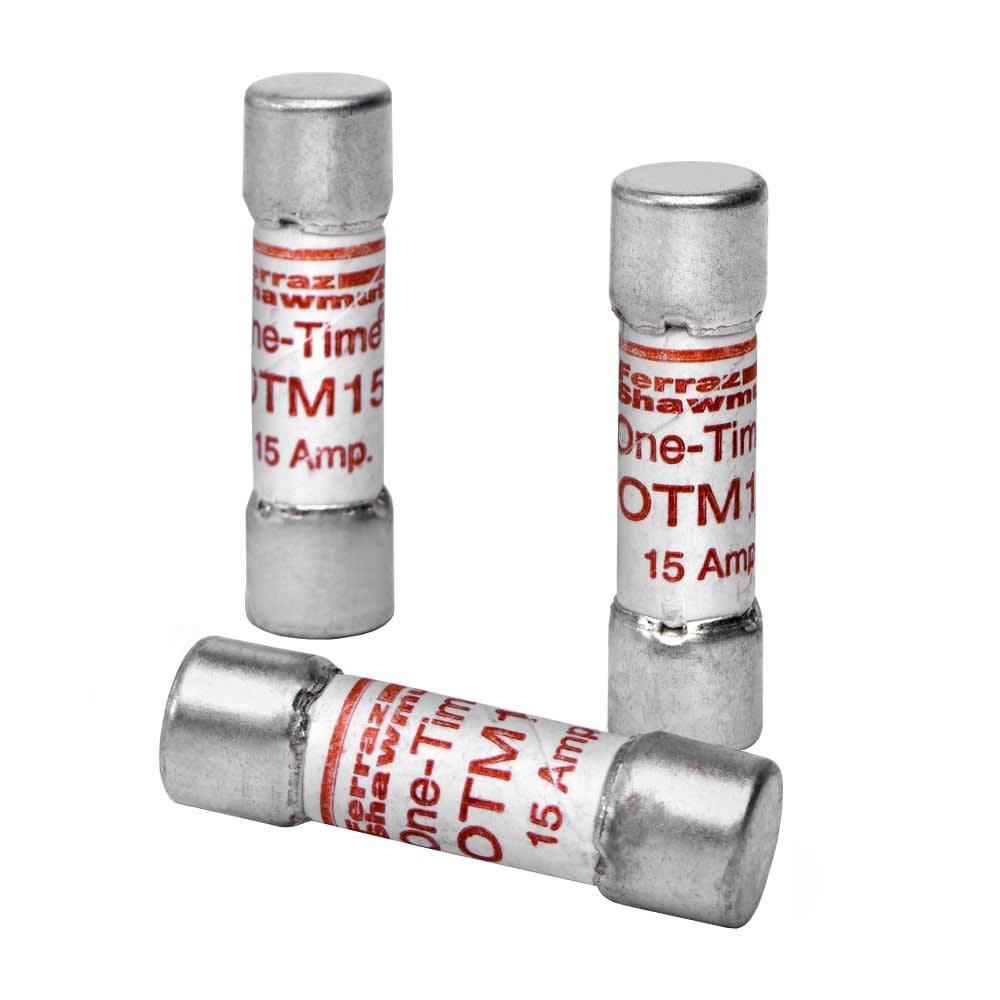

One-Time OTM midget fuses provide low-cost protection for 250VAC general purpose lighting, heating, control circuits, etc. where time-delay is not required. (Not for Branch Circuit Protection). Features: Low cost and fully rated for economy without compromise; Can be used with UltraSafe™ fuse holders; 1 1/2\" x 13/32\" (10 mm x 38 mm) dimensions - Applications: Supplemental protection of circuits up to 250VAC and 10kA - Approvals & Standards: UL Listed to standard 248-14, File E33925; CSA Certified to Standard C22.2 No. 248.14
