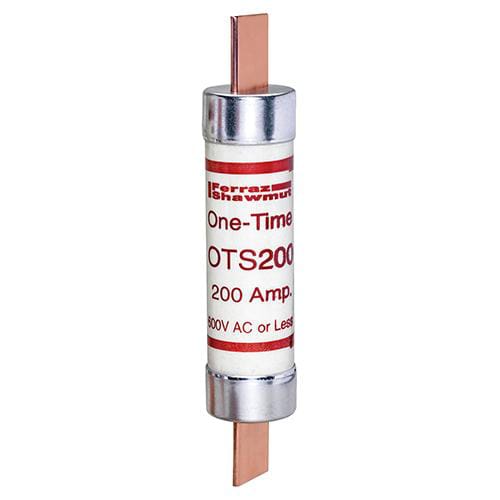

Ferraz Shawmut - Mersen OTS200 1-13/16 x 9-5/8 Inch 200 Amp 600 Volt Class K5 General Purpose Fuse

CopyCopy
Ferraz Shawmut - Mersen OTS200 1-13/16 x 9-5/8 Inch 200 Amp 600 Volt Class K5 General Purpose Fuse

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 782001700966

  • Amperage - 200 Amp

  • Applications - For Feeders, Resistive Heating, Residential and Small Commercial Installations

  • Catalog Number - OTS200

  • Class - K-5

Packaging

  • 1 ea

EAN

10782001700963

Part #

217791

Catalog #

OTS200

Commercial reference

OTS200

12-Digit UPC:

782001700966

Amperage:

200 Amp

Applications:

For Feeders, Resistive Heating, Residential and Small Commercial Installations

Catalog Number:

OTS200

Class:

K-5

ERP_productname:

FRZ OTS200 600V 200A 9 5/8X1 13/16 K5 FSE

Family Brand Name:

Ferraz Shawmut Canada, Inc.

Fuse Class:

Class K5

Interrupt Rating:

50 kAIC

Length:

9.63 Inch

Mounting Type:

Clip

Rated Voltage AC:

600 V

Rated Voltage DC:

300 V

Tc Connection:

Blade

Type:

North American Power Fuses

Voltage:

600 VAC

SoneparProductId:

SKU_US_59084180

One-Time OTS general purpose fuses provide low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. OTS fuses will safely interrupt available short circuit currents up to 50,000 amperes in all ratings. OTS fuses are not rejection fuses and care should be taken to ensure that replacement fuses do not have lower interrupting ratings than original fuses. Features: Easy to read imprint label for quick recognition and replacement; Low cost for high protection value - Applications: Feeders; Branch circuits; Resistive heating; Residential and small commercial installations - Approvals & Standards: UL Listed to Standard 248-9 File E2137; CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.); Self-certified for DC per UL248
