Ferraz Shawmut - Mersen S086795 CC1051CPGRC20X127/40
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 3605340075946
Amperage - 40 Amp
Applications - DC control circuit, measuring & monitoring auxiliaries circuit
Catalog Number - S086795
Country of Origin - France
Packaging
1 ea
EAN
33605340075947
Part #
181252
Catalog #
S086795
Commercial reference
S086795
12-Digit UPC:
3605340075946
Amperage:
40 Amp
Applications:
DC control circuit, measuring & monitoring auxiliaries circuit
Catalog Number:
S086795
Country of Origin:
France
ERP_productname:
FRZ S086795 CC1051CPGRC20X127/40
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Length:
5 Inch
Mounting Type:
Clip
Rated Voltage DC:
1000 V
Tc Connection:
Ferrule
Type:
DC Fuses
Voltage:
1,000 VDC
SoneparProductId:
SKU_US_72132419

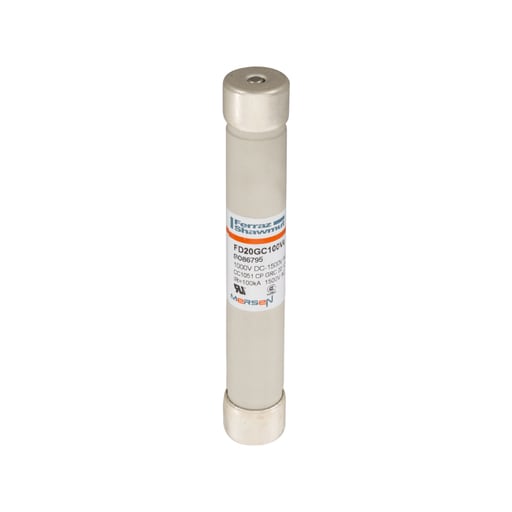

Specially developed for DC applications, 20x127 gR cylindrical is a fast acting, full range fuse used in the protection of auxiliaries, control circuit and other measuring and monitoring devices. Features: International 20x127mm (13/16\" x 5\") for worldwide acceptance; gR Class according to VDE 636-23 and IEC 60269-4; Low I²t for improved semiconductor protection; Eliminate all overloads; Extremely fast acting; Current limiting; Excellent cycling capability - Certifications: UL Recognized component; UL file No. E76491; IEC 60269-4 Compliance
