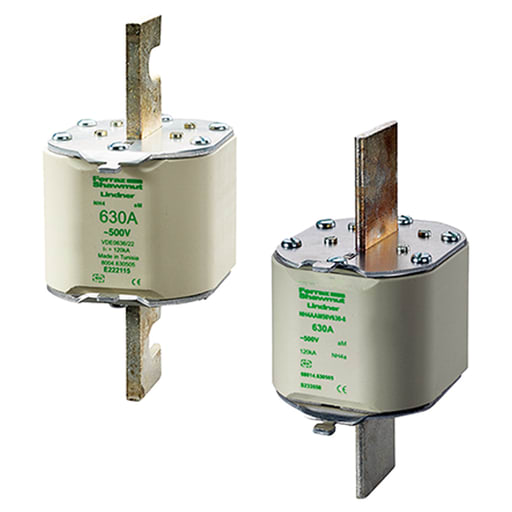

Ferraz Shawmut - Mersen S219137 Fuse-link NH4 aM 500

The NH system is classified among plug-in fuse systems and is composed of:* fuse-base (possibly including terminal covers and phase barriers)* fuse-link with blade contact* fuse-link replacement device (LV HRC fuse puller)Since the design of this system cannot guarantee non-interchangeability of rated current it must be handled by a qualified professional.Type "aM" NH fuse-links are partial-range breaking capacity fuse-links, used to protect motor circuits as they are strongly current-limiting and have low power losses. They interrupt currents from 6.3 times In up to their maximum breaking capacity and are therefore suited for short-circuit protection only. They must be associated with other switchgear for protection against overloads. These fuse-links can have a rated current equal to the motor's nominal current. Features: Dimensions according to DIN 43 620 parts 1 to 4; Non-isolated gripping lugs; Double indicator; Lead free contact blades; 0% cadmium - Certifications: VDE 0636 Part 201; IEC 60269-1 and -2
