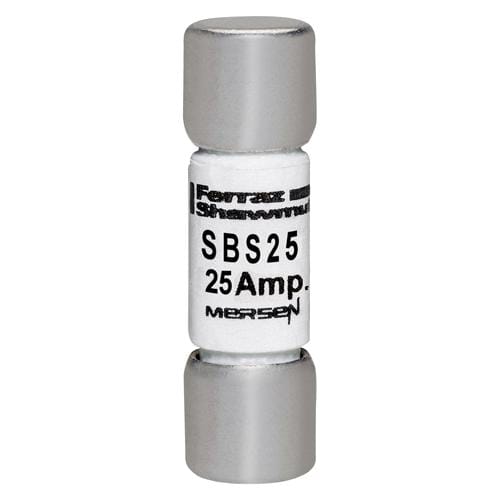

Ferraz Shawmut - Mersen SBS25 600V 25A 1 3/8x13/32 F
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782001907884
Amperage - 25 Amp
Applications - Control Circuits Lighting Ballasts Meter Circuits Electronic Circuits
Catalog Number - SBS25
Class - M
Packaging
1 ea
EAN
30782001907885
Part #
169766
Catalog #
SBS25
Commercial reference
SBS25
12-Digit UPC:
782001907884
Amperage:
25 Amp
Applications:
Control Circuits Lighting Ballasts Meter Circuits Electronic Circuits
Catalog Number:
SBS25
Class:
M
ERP_productname:
FRZ SBS25 600V 25A 1 3/8X13/32 FUSE
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Fuse Class:
Midget
Interrupt Rating:
100 kAIC
Length:
1.38 Inch
Mounting Type:
Clip
Rated Voltage AC:
600 V
Tc Connection:
Ferrule
Type:
Supplemental Protection
Voltage:
600 VAC
SoneparProductId:
SKU_US_71949423
SBS midget fast-acting fuses were developed in response to the industry's demand for smaller equipment and components. They are the only fuses in their size with a full 600VAC rating for all ampere ratings by UL Standard 248-14 and CSA No. 59.2, and are the only fuses of this size with an interrupting rating of 100kA RMS, compared to 10kA on other brands. Features: Small unique physical size for maximum design flexibility and noninterchangeability with other fuse classes; Fiberglass body provides dimensional stability in harsh industrial environments; Can be used with UltraSafeTM fuse holder; 1 3/8\" x 13/32\" dimensions - Applications: Control circuits; Lighting ballasts; Meter circuits; Electronic circuits; General purpose protection - Approvals & Standards: UL Listed to standard 248-14 File E33925; CSA Certified to Standard C22.2 No. 248.14
