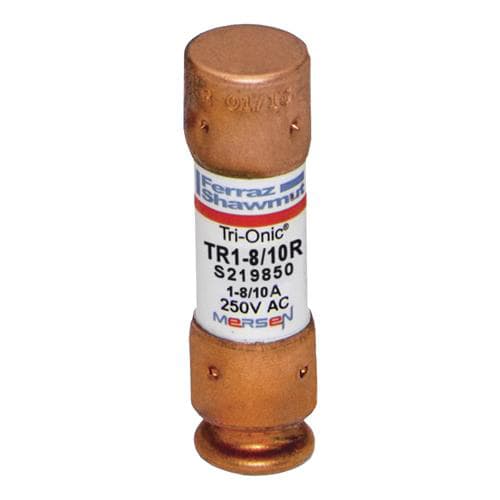

Ferraz Shawmut - Mersen TR1-8/10R 250V 1 8/10A 2x9/1

Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782001747633
Amperage - 1.8 Amp
Applications - Optional solid-state SmartSpot indicator Time-delay for motor start-ups and transformer inrush currents without nuisance opening Current-limiting for low peak let-thru current Rejection-style design prevents replacement errors (when used with recommended fuse block)
Catalog Number - TR1-8/10R
Class - RK-5
Packaging
1 ea
EAN
30782001747634
Part #
175142
Catalog #
TR1-8/10R
Commercial reference
TR1-8/10R
12-Digit UPC:
782001747633
Amperage:
1.8 Amp
Applications:
Optional solid-state SmartSpot indicator Time-delay for motor start-ups and transformer inrush currents without nuisance opening Current-limiting for low peak let-thru current Rejection-style design prevents replacement errors (when used with recommended fuse block)
Catalog Number:
TR1-8/10R
Class:
RK-5
ERP_productname:
FRZ TR1-8/10R 1-8/10A50VRK5TDFSE
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Fuse Class:
Class RK5
Interrupt Rating:
200 kAIC
Length:
2 Inch
Mounting Type:
Clip
Rated Voltage AC:
250 V
Rated Voltage DC:
250 V
Tc Connection:
Ferrule
Type:
North American, Time Delay
Voltage:
250 VAC
SoneparProductId:
SKU_US_72168678
