Ferraz Shawmut - Mersen TRM1/4 13/32 x 1-1/2 Inch 1/4 Amp 250 Volt Time Delay Midget Fuse
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782001741037
Amperage - 0.25 Amp
Applications - Small Motors Small Transformers Lighting Circuits Control Circuits
Catalog Number - TRM1/4
Class - M
Packaging
1 ea
EAN
30782001741038
Part #
111018
Catalog #
TRM1/4
Commercial reference
TRM1/4
12-Digit UPC:
782001741037
Amperage:
0.25 Amp
Applications:
Small Motors Small Transformers Lighting Circuits Control Circuits
Catalog Number:
TRM1/4
Class:
M
ERP_productname:
FRZ TRM1/4 1/4A MIDGET FUSE
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Fuse Class:
Midget
Interrupt Rating:
10 kAIC
Length:
1-1/2 Inch
Mounting Type:
Clip
Rated Voltage AC:
250 V
Tc Connection:
Ferrule
Type:
Supplemental Protection
Voltage:
250 VAC
SoneparProductId:
SKU_US_58874082

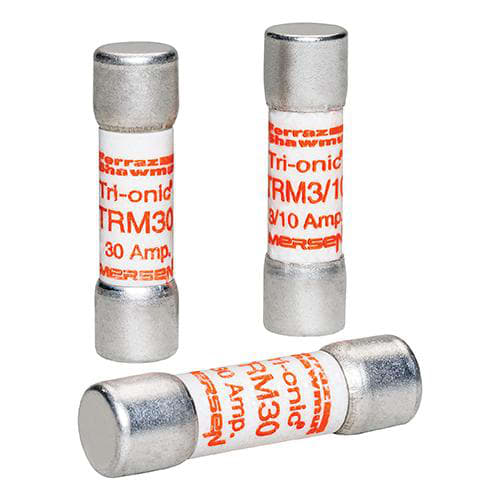

Tri-Onic® TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection). Features: Numerous ratings for a wide variety of applications; 250VAC rating in all sizes up to 30A; Time-delay for circuits with high inrush currrent; Can be used with UltraSafeTM fuse holders; 1 1/2\" x 13/32\" (10mm x 38mm) dimensions - Applications: Small motors; Small transformers; Lighting circuits; Control circuits - Approvals & Standards: UL listed to standard 248-14 File E33925; CSA Certified to Standard C22.2 No. 248.14
