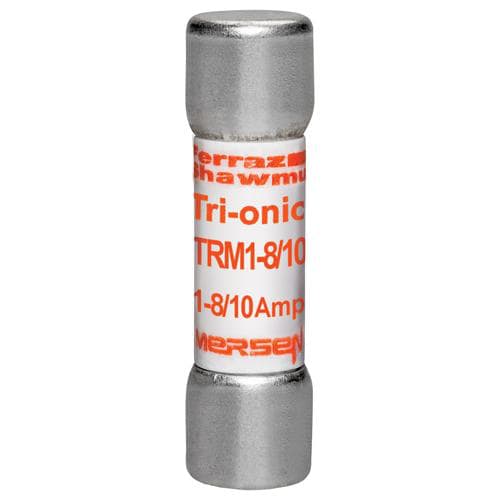

Ferraz Shawmut - Mersen TRM1-8/10 13/32 x 1-1/2 Inch 1-8/10 Amp 250 Volt Time Delay Midget Fuse

CopyCopy
Ferraz Shawmut - Mersen TRM1-8/10 13/32 x 1-1/2 Inch 1-8/10 Amp 250 Volt Time Delay Midget Fuse

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 782001743277

  • Amperage - 1.8 Amp

  • Applications - Small Motors, Small Transformers, Lighting Circuits and Control Circuits

  • Catalog Number - TRM1-8/10

  • Class - M

Packaging

  • 1 ea

EAN

30782001743278

Part #

175215

Catalog #

TRM1-8/10

Commercial reference

TRM1-8/10

12-Digit UPC:

782001743277

Amperage:

1.8 Amp

Applications:

Small Motors, Small Transformers, Lighting Circuits and Control Circuits

Catalog Number:

TRM1-8/10

Class:

M

ERP_productname:

FRZ TRM1-8/10 250V MIDGET TDFUSE

Family Brand Name:

Ferraz Shawmut Canada, Inc.

Fuse Class:

Class M

Interrupt Rating:

10 kAIC

Length:

1-1/2 Inch

Mounting Type:

Clip

Rated Voltage AC:

250 V

Tc Connection:

Ferrule

Type:

Time-Delay, Supplemental Protection

Voltage:

250 VAC

SoneparProductId:

SKU_US_59291254

Tri-Onic® TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection). Features: Numerous ratings for a wide variety of applications; 250VAC rating in all sizes up to 30A; Time-delay for circuits with high inrush currrent; Can be used with UltraSafeTM fuse holders; 1 1/2\" x 13/32\" (10mm x 38mm) dimensions - Applications: Small motors; Small transformers; Lighting circuits; Control circuits - Approvals & Standards: UL listed to standard 248-14 File E33925; CSA Certified to Standard C22.2 No. 248.14
