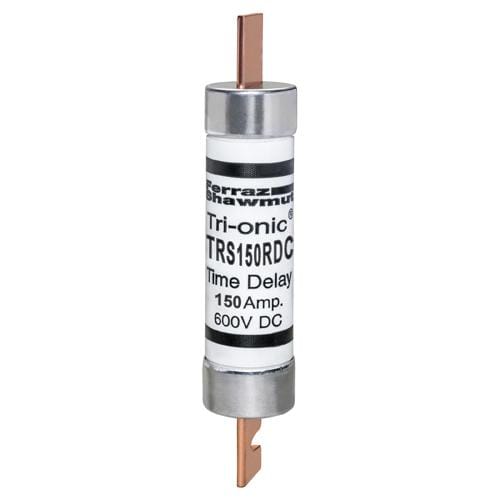

Ferraz Shawmut - Mersen TRS150RDC 74817-FUSE,TRIONIC
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782001748173
Amperage - 150 Amp
Applications - Mine Circuits Trailing Cables Pump Motors Rail Heaters
Catalog Number - TRS150RDC
Class - RK-5
Packaging
1 ea
EAN
10782001748170
Part #
141178
Catalog #
TRS150RDC
Commercial reference
TRS150RDC
12-Digit UPC:
782001748173
Amperage:
150 Amp
Applications:
Mine Circuits Trailing Cables Pump Motors Rail Heaters
Catalog Number:
TRS150RDC
Class:
RK-5
ERP_productname:
FRZ TRS150RDC 74817-FUSE,TRIONIC
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Fuse Class:
Class RK5
Interrupt Rating:
20 kAIC
Length:
9.63 Inch
Mounting Type:
Clip
Rated Voltage DC:
600 V
Tc Connection:
Blade
Type:
MSHA DC-Rated
Voltage:
600 VDC
SoneparProductId:
SKU_US_72014686

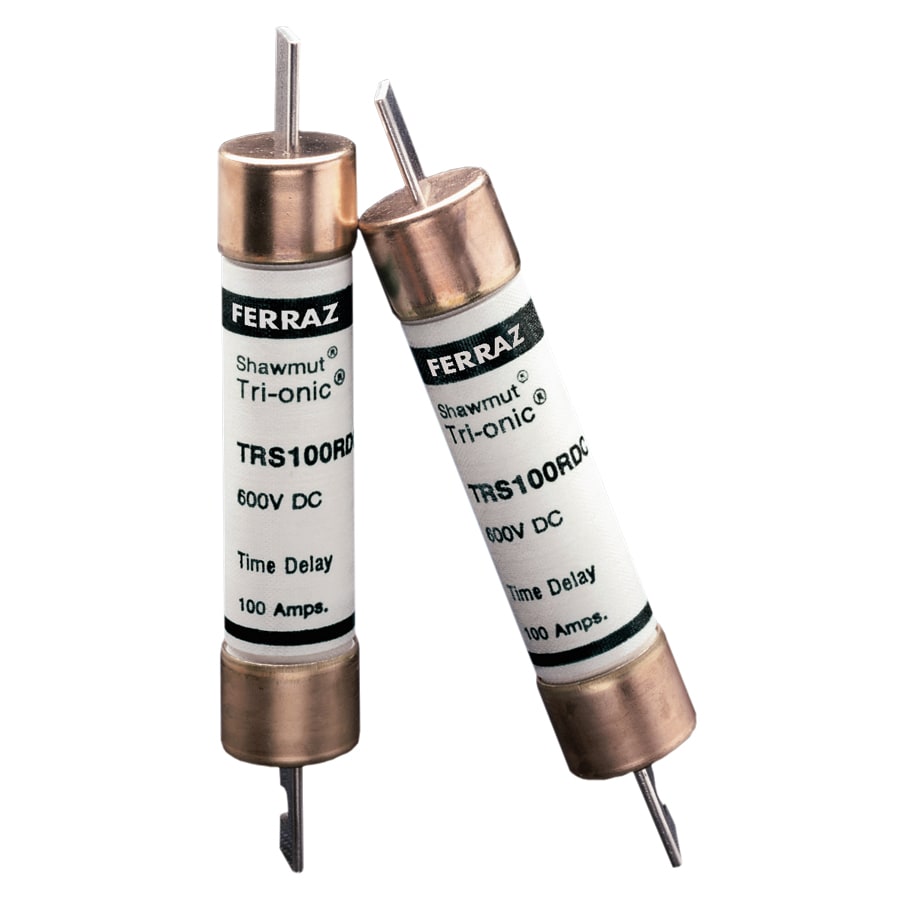

Tri-Onic® TRS-RDC time-delay fuse is designed for DC circuit protection in surface and underground mines. The TRS-RDC is MSHA approved and meets the industry's most severe third party requirements for 600VDC rated fuses. Features: DC rated for mine duty and other long time-constant applications; Time-delay for motor start-ups and high inrush loads without nuisance opening; Rugged glass melamine body for superior reliability in harsh environments - Applications: Mine circuits; Trailing cables; Pump motors; Rail heaters - Approvals & Standards: MSHA approval no. 28-26-0
