Fluke - FLK FLUKE-754 DOCUMENTING PROCESS C

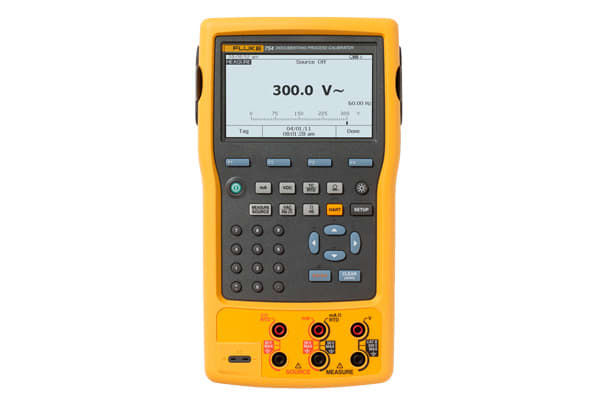

Fluke 754 Documenting Process Calibrator with HART communication does the work of many toolsWhether you're calibrating instruments, troubleshooting a problem, or running routine maintenance, the Fluke 754 with HART® communication can help you get the job done faster. It does so many different tasks, so quickly and so well, it's the only process calibrator you need to carry. This rugged, reliable integrated communicating calibrator is ideal for calibrating, maintaining, and troubleshooting HART and other instrumentation.The 754 is a power multifunction documenting calibrator that you can use to download procedures, lists, and instructions created with software; or upload data for printing, archiving, and analysis. The powerful built-in HART interface is capable of performing nearly all the day-to-day tasks you now perform with a separate communicator.In fact, the 754 does the work of several tools. It sources, simulates and measures pressure, temperature, and electrical signals with one rugged, hand-held device. For documentation, the 754 automates calibration procedures and captures your data. And, of course, it helps you meet rigorous standards like ISO 9000, FDA, EPA and OSHA regulations. Plus, the new improved graphical screen, Li-Ion battery for longer life, USB port, and accessories help you work smarter and faster.To create a seamless/paperless calibration management system consider adding Fluke DPCTrack2 Calibration Management software for use with your Fluke 753 and 754 or even legacy Fluke 743 and 744 calibrators.Other useful features:Handles fast pulsed RTD transmitters and PLCs, with pulses as short as 1 msMeasures/sources pressure using any of 29 Fluke 700Pxx Pressure ModulesCreates and runs automated as-found/as-left procedures to satisfy quality programs or regulations, and records and documents resultsHolds up to a full week of downloaded procedures and calibration resultsUses many features like autostep, custom units, user-entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay and moreProvides easy-to-use multi-lingual interfaceFeatures a bright white dual display for reading both sourced and measured parameters simultaneouslyIncludes rechargeable Li-Ion battery for 10 hour uninterrupted useComes with three-year warranty and DPC/Track Sample softwareOffers compatibility with many asset management software packages Powerful, Yet Easy To Use: The easy-to-follow menu-driven display guides you through any task. Get up to speed in minutes, not days. Programmable calibration routines enable you to create and run automated as-found/as-left procedures to ensure fast, consistent, calibrations. - Cases & Holsters: Fluke C700; Fluke C781 - Differential Pressure Flow Instrument Calibration: Routines use a square root function to directly calibrate DP flow instruments. - Software: Fluke 750SW - Soft Keys: Provide one-touch access to enhanced functions such as task lists, automated procedures, scaling, min/max, stepping and ramping, and review memory. - Custom Units: Enable you to map one unit to another, such as mV to ±C or ±F. Allows you to use the Fluke 750 Series with millivolt output accessories such as the Fluke 80T-IR Temperature Probe, and to document tests using non-supported units such as parts per million or revolutions per minute. - Three Operating Modes: Measure, Source, or simultaneous Measure/Source, - enable technicians to troubleshoot, calibrate, or maintain instrumentation with just one tool. - Batteries, Chargers & Adapters: Fluke BC7240; Fluke BP7240 - Built-In Algebraic Calculator: With four functions-plus square root-stores, recalls, and performs calculations required for setting up instruments or evaluating data in the field. Use it to set the source function to a calculated value. There's no need to carry a pencil and paper or a separate calculator. - Related Products: Fluke 753 Documenting Process Calibrator; Fluke 750P; Fluke 753; Fluke 750 SW DPC/TRACK2 Software; Fluke 726; Fluke 726 Precision Multifunction Process Calibrator; Fluke 725; Fluke 750P Series Pressure Modules; Fluke 721; Fluke 719Pro; Fluke 719; Fluke 718; Fluke 717 - HART Operating Modes Supported: Point to Point operation , the most commonly used mode, connects the 754 to a single HART device in a 4-20 mA loop.; In Multi-Drop mode , several HART instruments can be bussed together. The 754 searches for each, identifies addresses in use, and allows you to select the instrument for calibration and related operations.; In Burst Mode, the HART instrument transmits bursts of data without waiting to be interrogated by a master unit. The 754 can take transmitters out of burst mode during test or calibration, then later restore them to burst mode. - Work Smarter. Work Faster.: Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments; The 754 is a power multifunction documenting calibrator that lets you download procedures, lists, and instructions created with software-or upload data for printing, archiving, and analysis. The 754 also features a powerful built in HART® interface capable of performing nearly all the day-to-day tasks you now perform with a separate communicator.; Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters; Power transmitters during test using loop supply with simultaneous mA measurement; Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules; Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results; Holds up to a full week of downloaded procedures and calibration results.; Use many features like autostep, custom units, user entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay etc.; Easy to use; Three year warranty; Bright white dual display. Read both sourced and measured parameters simultaneously.; Multi lingual interface; Rechargeable Li-Ion battery for 10 hour uninterrupted use. Includes gas gauge.; Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 1 ms.; Delivered with DPC/Track Sample software.; Compatible with many Asset Management software packages. - User-Entered Values: Enables technicians to record calibration results that were sourced and/or measured by other devices such as panel meters or readout-only devices. - Clips: Fluke AC220; Fluke AC280; Fluke AC285 - Temperature Accessories: Fluke 80CJ M; Fluke 80CK M; Fluke 80PJ-1; Fluke 80PJ-EXT; Fluke 80PK 1; Fluke 80PK 22; Fluke 80PK 24; Fluke 80PK 25; Fluke 80PK 26; Fluke 80PK 27; Fluke 80PK 8; Fluke 80PK-9; Fluke 80PK; Fluke 80PT 25 - Test Probes: Fluke TP74; Fluke TP920 - Pressure Modules: Covers virtually any pressure application including gauge, differential, dual (compound), absolute, and vacuum.; A family of 29 optional pressure modules provides pressure calibration and measurement capabilities. Twenty-eight modules are available, with basic accuracy specs to 0.05%. Ranges start at 0 . 1 inH; Display pressure readings in any of 10 different pressure units you specify in the calibrator setup.; 0 (0 . .25kPa) and go to 0 . 10,000 psi (0 . 70,000 kPa). Additional information about pressure modules is available on the Pressure Modules Home Page.; Rugged urethane molded cases protect the modules from rough handling and harsh conditions.; Features internal temperature compensation from 0± to 50±C for full accuracy performance.; Includes NIST-traceable calibration certificate.; Modules can be calibrated locally, helping to control costs. - Limit Switch Calibration: Procedures perform fast, automated calibration of one and two-point limit switches for voltage, current, temperature, and pressure. - Bright White Display: Lets you read your results in any kind of light. Backlight has three (3) settings. - Programmable Measurement Delay: Inside automated procedures permits calibrating instruments that respond slowly. - Test Leads: Fluke TL940; Fluke TL950 - HART Capabilities: The Fluke 754 Documenting Process Calibrator-HART: Work smarter. Work faster.; Requires no external box or second tool for everyday HART calibration and maintenance.; The 754 is designed to take on nearly all the day-to-day tasks you now perform with a separate communicator. In fact, it offers most of the communication capabilities of a HART communicator.; To create a seamless/paperless calibration management system consider adding Fluke DPCTrack2 Calibration Management software for use with your Fluke 753 and 754 or even legacy Fluke 743 and 744 calibrators.; The 754 is designed to take on nearly all the day-to-day tasks you now perform with a separate communicator. In fact, it offers the communication capabilities of the 375 HART communicator.; Offers fast HART communication.; Supports popular models of HART transmitters, with more devise-specific command support than any other HART field calibrator.; Works with multiple masters, burst mode, and multi-drop configurations.; Is easy to update as additional instruments are added and new HART versions are released.; Interrogate to determine device type, manufacturer, model, tag.; Reconfigure the sensor mapping of dual sensor temperature transmitters.; Read HART PV function and smart transmitter digital output while measuring analog mA output.; Read and write HART configuration functions to make field adjustments to PV range points, damping, and other top-level configuration settings.; Re-label smart transmitters by reading and writing to the HART tag field. - Multi-Lingual Interface: Displays instructions in English, French, German, Spanish, and Italian. - Pressure Calibration Kit: Fluke 700PCK - Truly Hand-Held: Small enough to fit easily into a tool bag and to use in tight spaces. Runs an entire shift on a rechargeable Li-ion battery pack. - CarePlans: Fluke CarePlans - Includes: BC7240 battery charger; Li-on BP7240 battery pack; DPCTrack 2™ Sample Software; Instruction manual; NIST-traceable calibration report and data; Three sets of TP220 test probes with three sets of .extended tooth\" alligator clips; Two sets AC280 hook clips; C799 Soft Field Case; USB communication cable, Fluke 754HHC HART communications cable - Pumps & Accessories: Fluke 700PMP; Fluke 700HTH-1; Fluke 700HTP 2; Fluke 700PRV-1; Fluke 700PTP-1 - Versatile HART Protocol support: Sensor Trim not supported; Universal commands provide functions that are implemented in all field devices, for example, read manufacturer and device type, read primary variable (PV), or read current output and percent of span.; The 754 supports the commands contained in HART protocol Version 5.7. With 2 MB of memory, the 754 supports a substantial set of HART instructions:; Common practice commands provide functions that are common to many but not all field devices, for example read multiple variables, set damping time, or perform loop test.; Device-specific commands provide functions that are unique to a particular field device, for example sensor trim. - Additional Features: Calibrate temperature, pressure, voltage, current, resistance, and frequency. Since it both measures and sources, you can troubleshoot and calibrate all with one rugged tool. - Rugged and reliable: Count on Fluke's rugged design to deliver top accuracy and reliability in harsh environments. Overmolded urethane case stands up to rough handling in industrial environments. - Records and Documents Results: To support your ISO-9000 or regulatory standards the Fluke 754 captures your calibration results, eliminating the need to juggle a pen and pad in the field. The USB interface lets you transfer the results to a PC, thus saving the time of having to manually transcribe them when you return to the shop. - You.re going to love what we.ve done with your calibrator.: The 754 is everything you needed and wished for in the 744 and more! HART communication capability is combined to deliver an integrated communicating calibrator. This rugged, reliable tool is ideal for calibrating, maintaining, and troubleshooting HART and other instrumentation.; The 754 does the work of several tools - sourcing, simulating and measuring pressure, temperature, and electrical signals in one rugged, hand-held device. You.ll fall in love with the new improved graphical screen, Li-Ion battery for longer life, USB port and new accessories to complete the package.; For documentation, the 754 automates calibration procedures and captures your data. And, of course, it helps you meet rigorous standards like ISO 9000, FDA, EPA and OSHA regulations. - Automated Procedures: Allow you to quickly set up powerful, automated calibration procedures for linear transmitters, DP flow transmitters, and one- and two-point limit switches. Simply select the appropriate measure and/or source functions and fill out the procedure template. The 750 Series does the rest. It quickly performs the test, calculates the errors, and displays the final results, highlighting out of tolerance points.
