Fluke - Fluke FLUKE-787 1000 VAC/VDC 30 mA Process Meter

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 095969048323

  • Amperage - 0-1 Amp

  • Applications - Measuring electrical parameters and supplying steady or ramping current to test process instruments

  • Catalog Number - 787

  • ERP_productname - FLUK 787 METER

Packaging

  • 1 ea

EAN

Part #

112131

Catalog #

787

Commercial reference

787

12-Digit UPC:

095969048323

Amperage:

0-1 Amp

Applications:

Measuring electrical parameters and supplying steady or ramping current to test process instruments

Catalog Number:

787

ERP_productname:

FLUK 787 METER

Enclosure:

Hard plastic

Family Brand Name:

Fluke Corporation

Type:

Digital Multimeter

Voltage:

1000 Volt

SoneparProductId:

SKU_US_25412852

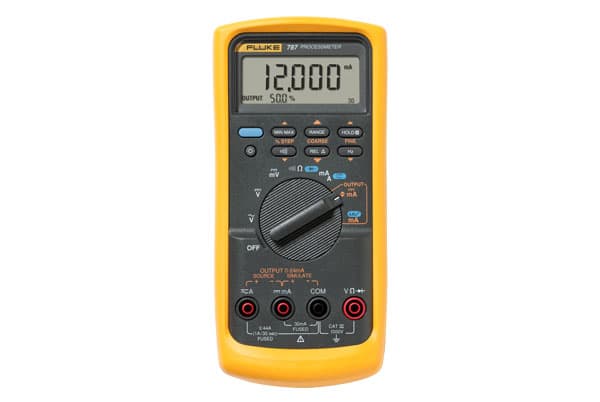

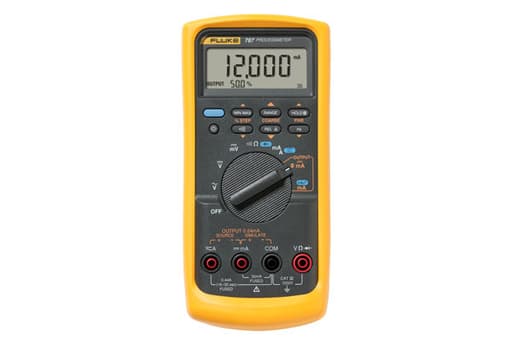

Processmeter™, DMM and loop calibrator in one tool, 25% manual step plus auto step and auto ramp on mA output, Withstand 1 meter drop test, Includes AC70A alligator clips, C81Y protective yellow holster with Flex-Stand™, One 9V alkaline battery, TL75 safety-designed test lead set. Features: DMM and loop calibrator in one tool; Clear LCD with backlight; 4,000 counts (30,000 counts for DC current); Externally accessible battery for easy battery changes.; 1000 V overload protection on V, ohms, frequency.; 150 V overload protection on mA, backed up by 440 mA 1000V fuse.; 25% Manual Step plus Auto Step and Auto Ramp on mA output. - Fluke combined the DMM you trust with the loop calibrator you need.: The Fluke 787 ProcessMeter™ puts a complete troubleshooting solution in the palm of your hand. Get in touch with more information, faster and easier with the newest member of the Fluke 80 Series, the 787 ProcessMeter. The 787 gives you the measurement capabilities you expect from our rugged, reliable DMMs plus the ability to source, simulate, or measure dc current with 1 microamp resolution and accuracy of 0.05%. Put it all together and you have the ideal tool for troubleshooting and calibrating current loop applications. So if you're tired of always tracking down a calibrator, lugging around two tools and switching back and forth, get the single best solution for doubling your power. The 787 ProcessMeter from Fluke. - Cases & Holsters: Fluke C100; Fluke C25; Fluke C510; Fluke C550; Fluke C800; Fluke C90; Fluke CAMO-C25; Fluke CXT170; Fluke H80M - Current Clamps: Fluke i1010; Fluke i200; Fluke i200s; Fluke i400; Fluke i410 - Double Your Power: Want a built in 24-Volt loop supply and 250 ? HART resistor? Consider the Fluke 789.; A maintenance and calibration tool that will be at home in every instrumentation technician's tool box,the Fluke 787 ProcessMeter™ combines a DMM and a loop calibrator in one rugged, handheld tool, for about what you would expect to pay for a loop calibrator alone. Based on the trusted Fluke 87 DMM, the 787 adds the ability to measure, source, and simulate dc loop current with 0.05% accuracy and 1 microamp resolution. - Clips: Fluke AC220; Fluke AC280; Fluke AC283; Fluke AC285; Fluke AC87; Fluke AC89; Fluke BP980; Fluke TLK225 - Temperature Accessories: Fluke 80PK 22; Fluke 80PK 24; Fluke 80PK 25; Fluke 80PK 26; Fluke 80PK 27 - Test Probes: Fluke TL910; Fluke TP38; Fluke TP1; Fluke TP2; Fluke TP220; Fluke TP4; Fluke TP74; Fluke TP80; Fluke TP912; Fluke TP920 - Options: Fluke MeterCleaner Wipes - Test Leads: Fluke H900; Fluke TL220; Fluke TL221; Fluke TL222; Fluke TL223; Fluke TL224; Fluke TL238; Fluke TL27; Fluke TL40; Fluke TL71; Fluke TL75; Fluke TL76; Fluke TL81A; Fluke TL930; Fluke TL932; Fluke TL935; Fluke TL940; Fluke TL950; Fluke TL960; Fluke TL970 - Light: Fluke L215 - Test Leads, Probes & Clips: Fluke 85RF; Fluke TL80A - CarePlans: Fluke CarePlans - Includes: AC70A Alligator Clips; C81Y Protective Yellow Holster with Flex-Stand™; One 9V Alkaline Battery; Quick Reference Guide; TL75 Safety-Designed Test lead Set - Precision 1000 V, 440 mA digital multimeter: Measure AC and DC volts, AC and DC current, resistance, continuity, and frequency; 0.1% DC voltage accuracy; 0.05% DC current accuracy, 1 .A resolution to 30 mA; Simultaneous mA and % of scale readout; True rms AC voltage measurement to 1 kHz; Frequency measurement to 20 kHz; Min/Max/Average/TouchHold/Relative modes; Diode test and continuity beeper - DC current source/loop calibrator: Meets 1000 volt EN61010-1 CAT III standards.; Safety Conformance; 20 mA current source/simulator; Simultaneous mA and % of scale readout; Manual step (25%, coarse, fine) plus auto step and auto ramp
