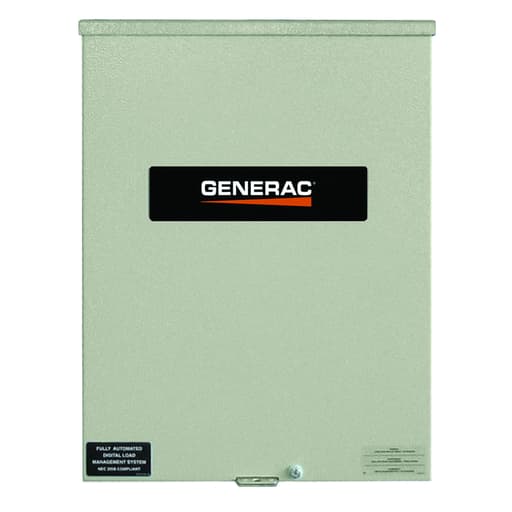

Generac Power Systems Inc - Generac RTSN100G3 100 Amp 120/208 NEMA 3R Generator Transfer Switch

Generac Automatic Transfer Switches are designed for use with three phase generators that utilize an Evolution or Nexus Controller. Through the use of digital power technology (DPM), these switches have the capability to manage up to 4 individual HVAC (24 VAC controlled) loads with no additional hardware. Features: Smart Switch 100 Amp 1ø NEMA 3R CUL; Generac automatic transfer switches are housed in an aluminum NEMA/UL type 3R enclosure, with electrostatically applied and baked powder paint; Heavy duty Generac contactor is a UL and CUL recognized device, designed for years of service, the controller at the generator handles all the timing, sensing, exercising functions and transfer commands; Through the use of digital power technology (DPM), these switches have the capability to manage up to 4 individual HVAC (24 VAC controlled) loads with no additional hardware; When used in tandem with smart management modules, up to 8 more loads can be managed as well, providing the most installation efficient power management options available; Cycles power on and off as needed for different appliances; Switch is covered by a 5 year limited warranty; Three-phase, 120/208-volt; UL and CUL listed transfer switch - Certifications and Standards: UL Listed
