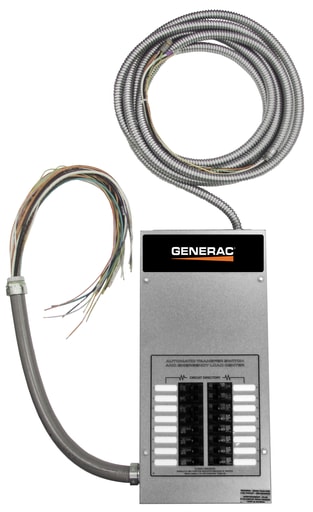

Generac Power Systems Inc - Generac RXG16EZA1 16-Circuit RTS Transfer Switch & Load Center, 85A 120-240 1PH, Pre-Wired

The Generac pre-wired switch is designed to operate with 9 to 16 kW air-cooled generators. This transfer switch has an integrated load center for picking up the emergency circuits. it is especially useful where the main service is large and only a portion of the building load will be served by the generator. It is available with a built-in 10 or 16 circuit load center to supply only those circuits that are essential during an emergency. All standard and load center transfer switches are CUL listed and suitable for use in optional standby systems. (NEC702) Features: 16-circuit 100 Amp ATS - NEMA 1 CUL; All pre-wired switches are housed in a steel NEMA 1 enclosure, with electrostatically applied and baked powder paint; The heavy duty Generac contactor is a UL recognized device, designed for years of service; The Controller at the generator handles all the timing, sensing, and exercising functions; Multi listed for use with 1 in. standard, tandem, GFCI and AFCI breakers from Siemens, Murray, Eaton and Square D for the most flexible and cost effective install
