General Cable - FIB C4841A.41.10 1P/24 7/32TC FL/BR

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 079407050420

  • Applications - Computers Industrial equipment Data transmission Control circuits Low capacitance requirements Suitable for EIA RS-485 applications Suggested voltage rating: 30 volts

  • Catalog Number - C4841A.41.10

  • Color - Gray

  • Conductor Material - Annealed Tinned Copper

Packaging

  • 1 ea

EAN

00079407050420

Part #

187561

Catalog #

C4841A.41.10

Commercial reference

C4841A.41.10

12-Digit UPC:

079407050420

Applications:

Computers Industrial equipment Data transmission Control circuits Low capacitance requirements Suitable for EIA RS-485 applications Suggested voltage rating: 30 volts

Catalog Number:

C4841A.41.10

Color:

Gray

Conductor Material:

Annealed Tinned Copper

Conductor Size:

24 AWG

Country of Origin:

USA

ERP_productname:

GCBL C4841A.41.10 1P/24 7/32TC FL/BRD SH CM BELDN - 9841

Family Brand Name:

General Cable

Heights:

11 Foot

Length:

12 Foot

Number of Conductors:

1

Sub Brand:

Carol® Brand

Widths:

12 ft

SoneparProductId:

SKU_US_192418867

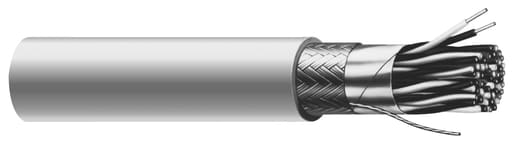

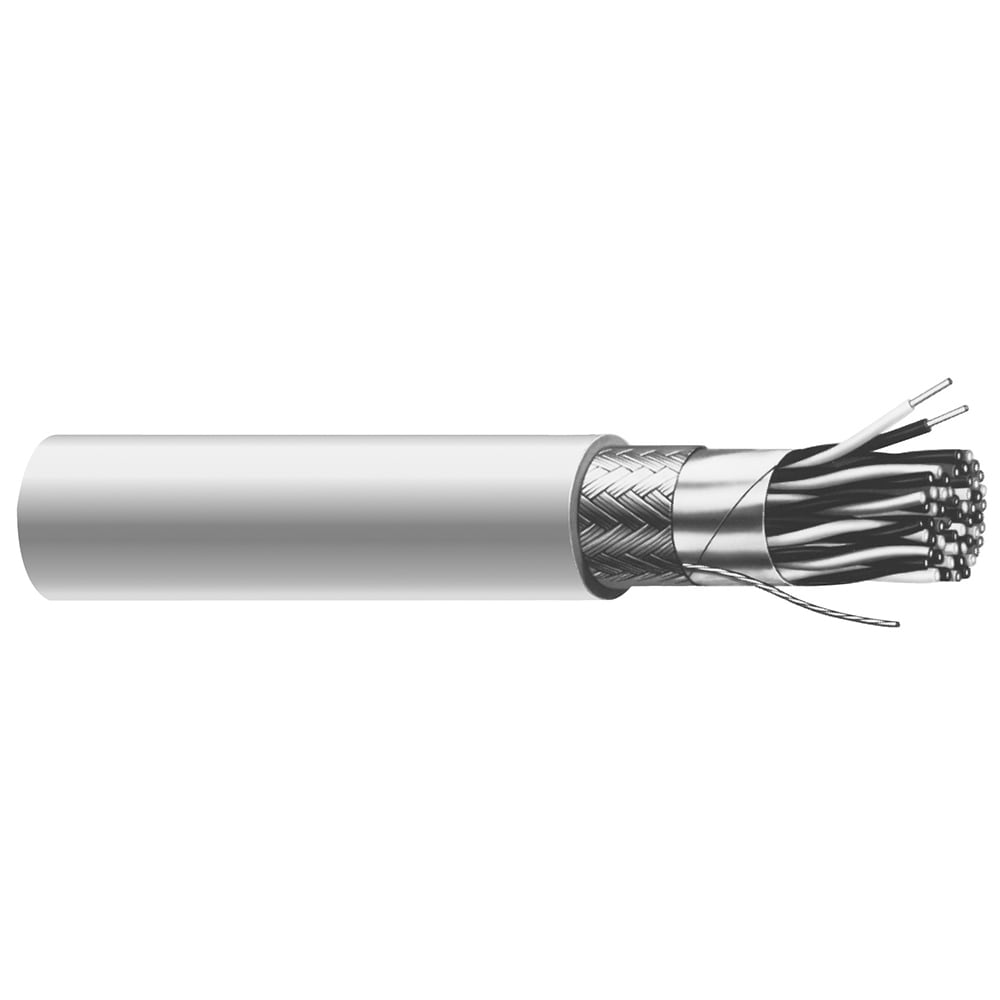

Multi-Paired, Foil/Braid Shield, Lo-Cap®UL 2919, NEC Type CM (UL) c(UL) CMH, 1P/24 7/32TC FL/BRD SH CM, 1000' Reel Applications: Computers; Industrial equipment; Data transmission; Control circuits; Low capacitance requirements; Suitable for EIA RS-485 applications; Suggested voltage rating: 30 volts - Jacket: PVC, gray; Temperature range: -20?C to +80?C - Compliances: NEC Article 800 Type CM/CMH (UL: 75±C, 300 V); UL Style 2919 (UL: 80?C, 30 V); RoHS Compliant Directive 2015/863/EU (RoHS-3); Passes CSA CMH Flame Test - Conductor: 24 AWG fully annealed stranded tinned copper per ASTM B33; Twisted pairs - Insulation: Premium-grade, coIor-coded polyethylene - Shield: 100% Flexfoil® aluminum/polyester with 25% overlap, minimum, foil facing out; Stranded tinned copper drain wire; 90% tinned copper braid
