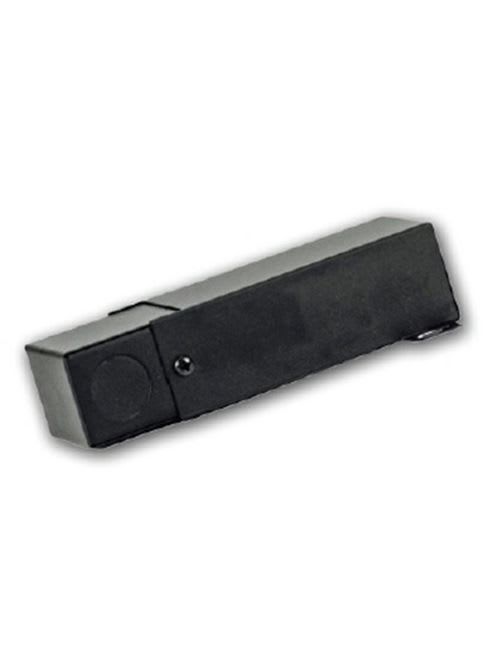

GM Lighting - GM Lighting LTHM30-DIM Dimmable Transformer
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 849951002431
Applications - For Outdoor and Indoor use
Catalog Number - LTHM30-DIM
Color - Powder Coated Black
ERP_productname - GMLT LTHM30-DIM 30W 12VDC LED DIMMABLE POWER SUPPLY
Packaging
1 ea
EAN
Part #
220227
Catalog #
LTHM30-DIM
Commercial reference
LTHM30-DIM
12-Digit UPC:
849951002431
Applications:
For Outdoor and Indoor use
Catalog Number:
LTHM30-DIM
Color:
Powder Coated Black
ERP_productname:
GMLT LTHM30-DIM 30W 12VDC LED DIMMABLE POWER SUPPLY
Family Brand Name:
GM Lighting
Heights:
1-3/4 Inch
Input Voltage:
120 VAC
Length:
7-1/2 Inch
Material:
Metal
Output Current:
2500 mA
Output Voltage:
12 VDC
Type:
Dimmable, Magnetic, Class-2, Auto Reset
Widths:
2-1/8 in
SoneparProductId:
SKU_US_25496014
Smallest dimmable Class II hardwire LED dimming magnetic power supply on the market that works with conventional low voltage magnetic wall mount dimmer with on/off switch. Features include high efficiency, excellent load regulation and no wattage de-rating under 100% load. There is no minimum load requirements for this transformer/driver. 30 Watts. 12 VDC output. 120V input. 2.5A. 60Hz frequency.
