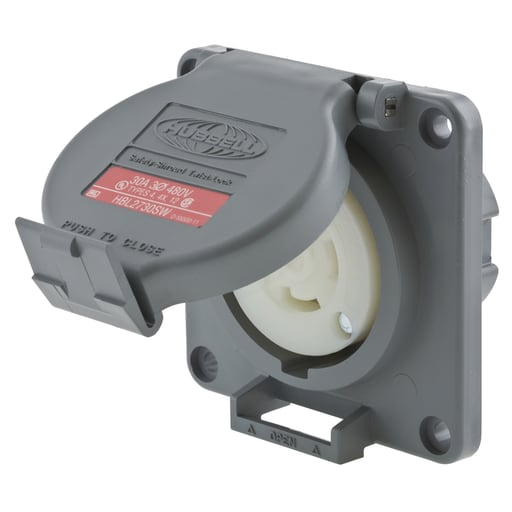

Hubbell Wiring Device - Hubbell HBL2730SW 30 Amp 480 Volt 3-Pole 4-Wire NEMA L16-30R Gray Watertight Locking Receptacle
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585231907
Amperage - 30 Amp
Applications - Heavy Duty Industrial Shrouded Watertight
Catalog Number - HBL2730SW
Color - Gray and White
Packaging
1 ea
EAN
00783585231907
Part #
216697
Catalog #
HBL2730SW
Commercial reference
HBL2730SW
12-Digit UPC:
783585231907
Amperage:
30 Amp
Applications:
Heavy Duty Industrial Shrouded Watertight
Catalog Number:
HBL2730SW
Color:
Gray and White
Conductor Size:
12-8 AWG
Country of Origin:
USA
Current:
30 Amp
ERP_productname:
HUB HBL2730SW LKG RCPT-NMA L16-30R
Family Brand Name:
Hubbell Wiring Device-Kellems
Grade:
Industrial
Heights:
2.9 Inch
Horsepower:
10 hp
Length:
3-3/4 Inch
Material:
Thermoplastic
Mounting Type:
Screw, Surface
NEMA:
L16-30R
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Number of Wires:
4-Wire Grounding
Size:
Standard
Sub Brand:
Twist-Lock®
Tc Connection:
Screw Terminal
Type:
Heavy Duty, Shrouded
Voltage:
480 Volt
Wattage:
14400 Watt
Widths:
3.200 in
Wire Size:
16-8 AWG
SoneparProductId:
SKU_US_25398858
