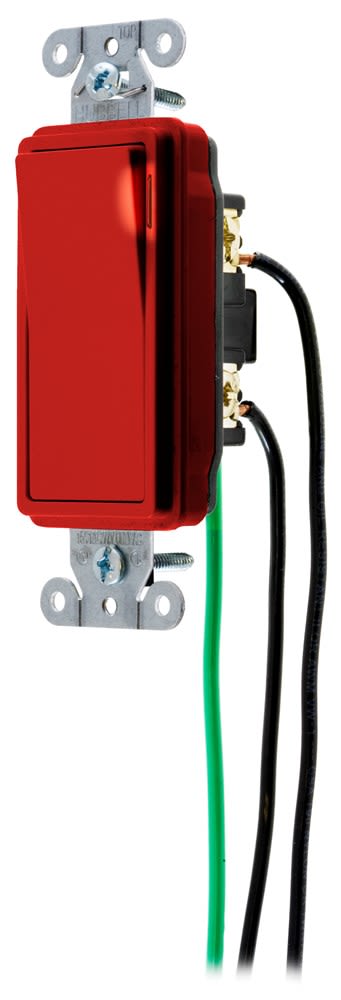

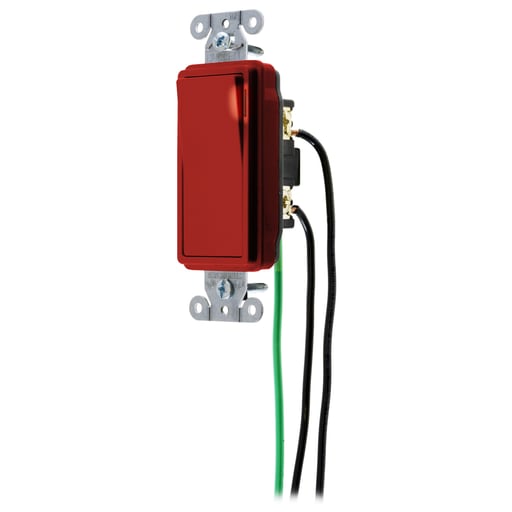

Hubbell Wiring Device - HCI DSL120PL SWITCH, DECO, SP, 20A
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585150918
Actuator - Rocker
Amperage - 20 Amp
Applications - 8" #12 AWG THHN
Catalog Number - DSL120PL
Packaging
50 ea
EAN
00783585150918
Part #
411460
Catalog #
DSL120PL
Commercial reference
DSL120PL
12-Digit UPC:
783585150918
Actuator:
Rocker
Amperage:
20 Amp
Applications:
8" #12 AWG THHN
Catalog Number:
DSL120PL
Color:
Red
Conductor Size:
12 AWG
Country of Origin:
China
Current:
20 Amp
ERP_productname:
HUB DSL120PL SWITCH, DECO, SP, 20A 120/277V, PLR, WL
Enclosure:
None
Family Brand Name:
Hubbell Incorporated
Heights:
1.61 Inch
Length:
4.12 Inch
Material:
Polycarbonate
Max Current:
20 A
Max Voltage:
277 V
Number of Poles:
1-1 Pole
Size:

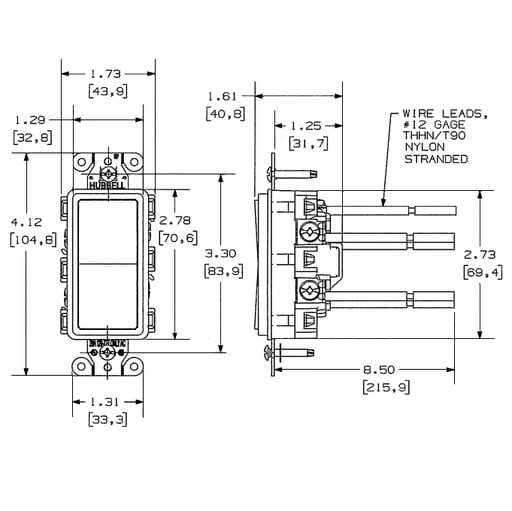

4.12 in x 1.73 in x 1.61 in
Sub Brand:
AC Decorator Switches
Tc Connection:
Pre-Wired Leads
Type:
Rocker/Decorator
Voltage:
120-277 Volt
Wattage:
5540 Watt
Widths:
1.73 in
Wire Size:
12 AWG
SoneparProductId:
SKU_US_30082228
