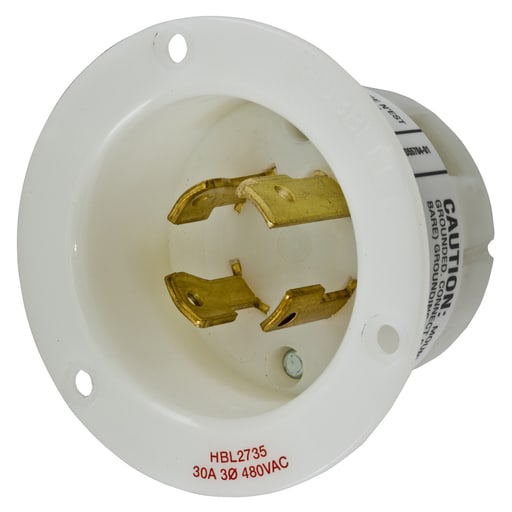

Hubbell Wiring Device - HCI HBL2735 LKG FLG-INLT, 30A 3P 48
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585039350
Amperage - 30 Amp
Applications - Extra Heavy Duty Industrial
Catalog Number - HBL2735
Color - White
Packaging
1 ea
EAN
00783585039350
Part #
429732
Catalog #
HBL2735
Commercial reference
HBL2735
12-Digit UPC:
783585039350
Amperage:
30 Amp
Applications:
Extra Heavy Duty Industrial
Catalog Number:
HBL2735
Color:
White
Conductor Size:
12-8 AWG
Country of Origin:
USA
Current:
30 Amp
ERP_productname:
HUB HBL2735 LKG FLG-INLT, 30A 3P 480V, L16-30P, WH
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
2.27 Inch
Length:
3.06 Inch
Material:
Composite
NEMA:
L16-30P
Number of Conductors:
4
Number of Phases:
3 Phase
Number of Poles:
3-3 Pole
Number of Wires:
4,4
Size:
3.06 in x 3.06 in x 2.27 in
Sub Brand:
Twist-Lock®, Insulgrip®
Tc Connection:
Screw Terminals
Type:
Standard, Single, Locking, 3-Pole
Voltage:
480 Volt
Wattage:
14400 Watt
Widths:
3.06 in
Wire Size:
16-8 AWG
SoneparProductId:
SKU_US_598314348
