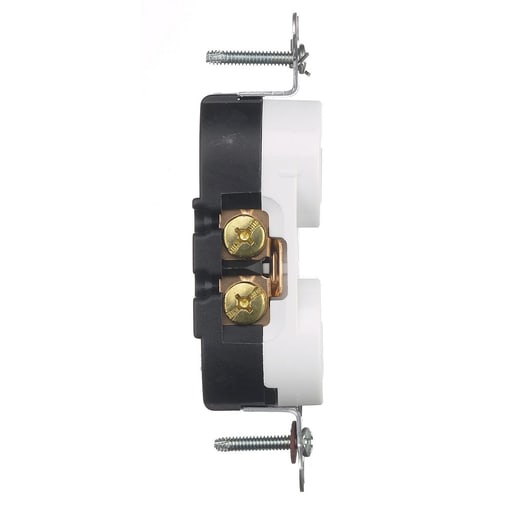

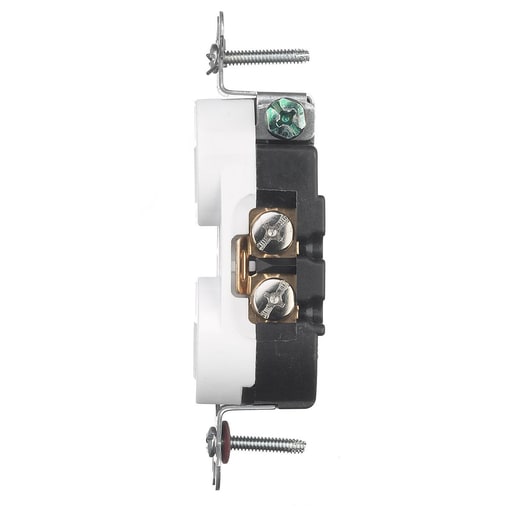

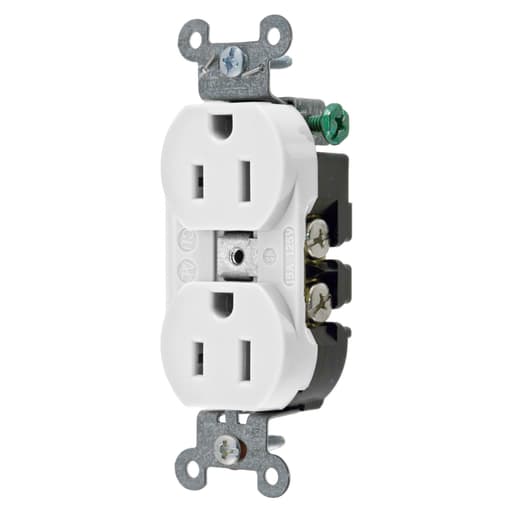

Hubbell Wiring Device - Hubbell 5252A-W White 15A 125V Duplex Receptacle. Heavy Duty Industrial Series

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585109725

  • Amperage - 15 Amp

  • Applications - Hubbell-Pro Heavy Duty

  • Catalog Number - 5252AW

  • Color - White

Packaging

  • 1 ea

EAN

00783585109725

Part #

142825

Catalog #

5252AW

Commercial reference

5252AW

12-Digit UPC:

783585109725

Amperage:

15 Amp

Applications:

Hubbell-Pro Heavy Duty

Catalog Number:

5252AW

Color:

White

Conductor Size:

14-12 AWG

Country of Origin:

China

Current:

15 Amp

ERP_productname:

HUB 5252AW RCPT, DUP SB, HUBPRO, 15A 125V, SM , WH

Enclosure Material:

Stainless Steel

Family Brand Name:

Hubbell Wiring Device-Kellems

Finish:

Smooth

Grade:

Industrial

Heights:

1.1 Inch

Horsepower:

0.5 hp

Length:

3.28 Inch

Material:

Thermoplastic

Mounting Type:

Screw

NEMA:

5-15R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire Grounding

Size:

Standard

Sub Brand:

Hubbell Pro™

Tc Connection:

Back and Side Wired

Type:

Heavy Duty

Voltage:

125 Volt

Wattage:

1875 Watt

Widths:

1.41 in

Wire Size:

14-10 AWG

SoneparProductId:

SKU_US_25440033

Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, White Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 V-2; Environmental - Operating Temperatures - Maximum continuous 75±C, minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only; Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498 - Features: Slender/compact design; Smooth face; Self Grounding; Triple wipe contacts - Industry Standard(s): Certified to CSA 22.2, No. 42 File 285; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL File No. E2186
