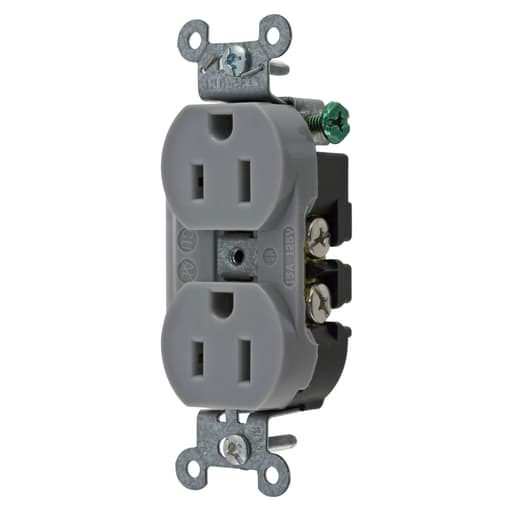

Hubbell Wiring Device - Hubbell 5252AG Receptacle, DUP SB, HUBPRO, 15A 125V, SF, GY

Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585109701
Amperage - 15 Amp
Applications - Heavy Duty
Catalog Number - 5252AG
Color - Gray
Packaging
1 ea
EAN
00783585109701
Part #
108604
Catalog #
5252AG
Commercial reference
5252AG
12-Digit UPC:
783585109701
Amperage:
15 Amp
Applications:
Heavy Duty
Catalog Number:
5252AG
Color:
Gray
Conductor Size:
14-12 AWG
Country of Origin:
China
Current:
15 Amp
ERP_productname:
HUB 5252AG DUP RCPT, CONST GRD, 15A 125V, 5-15R, GY
Enclosure Material:
Stainless Steel
Family Brand Name:
Hubbell Wiring Device-Kellems
Grade:
Industrial
Heights:
1.1 Inch
Horsepower:
0.5 hp
Length:
3.28 Inch
Material:
Thermoplastic
Mounting Type:
Screw
NEMA:
5-15R
Number of Phases:
1 Phase
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Size:
Standard Sized
Sub Brand:
Straight Blade
Tc Connection:
Back and Side Wired
Type:
Traditional, Heavy Duty
Voltage:
125 Volt
Wattage:
1875 Watt
Widths:
1.41 in
Wire Size:
14-10
SoneparProductId:
SKU_US_29082331
