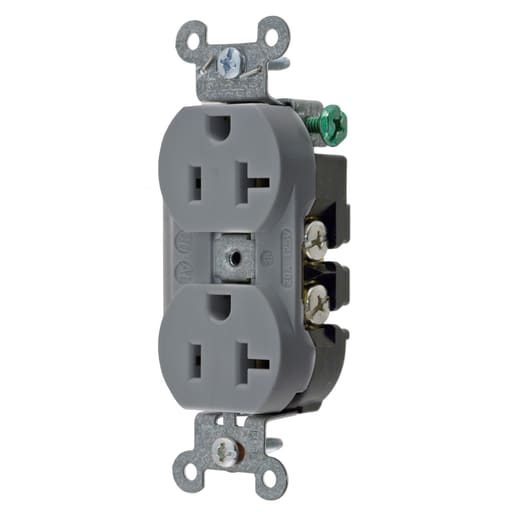

Hubbell Wiring Device - Hubbell 5352A-G Gray 20A 125V Duplex Receptacle. Heavy Duty Industrial Series

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585109763

  • Amperage - 20 Amp

  • Applications - Heavy Duty

  • Catalog Number - 5352AG

  • Color - Gray

Packaging

  • 1 ea

EAN

00783585109763

Part #

108663

Catalog #

5352AG

Commercial reference

5352AG

12-Digit UPC:

783585109763

Amperage:

20 Amp

Applications:

Heavy Duty

Catalog Number:

5352AG

Color:

Gray

Conductor Size:

14-12 AWG

Country of Origin:

China

Current:

20 Amp

ERP_productname:

HUB 5352AG RCPT, DUP SB, HUBPRO, 20A 125V, SF, GY

Family Brand Name:

Hubbell Wiring Device-Kellems

Finish:

Smooth

Grade:

Industrial

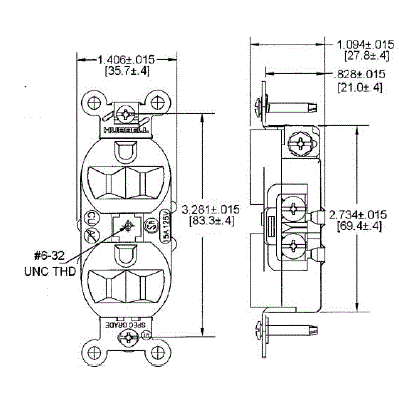

Heights:

1.09 Inch

Horsepower:

1 hp

Length:

3.28 Inch

Material:

Thermoplastic

Mounting Type:

Screw

NEMA:

5-20R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard Sized

Sub Brand:

Straight Blade

Tc Connection:

Back and Side Wired

Type:

Traditional, Heavy Duty

Voltage:

125 Volt

Wattage:

2500 Watt

Widths:

1.41 in

Wire Size:

12-10 AWG

SoneparProductId:

SKU_US_25439921

Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Gray Features: Slender/compact design; Smooth face; Triple wipe contacts - Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 V-2; Environmental - Operating Temperatures - Maximum continuous 75±C, minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only; Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498 - Industry Standard(s): Certified to CSA 22.2, No. 42 File 285; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL File No. E2186
