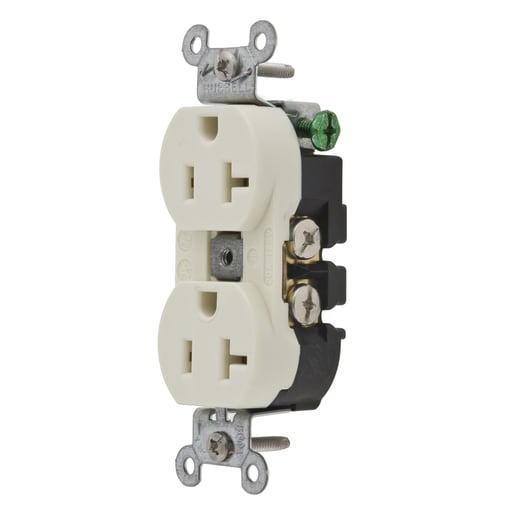

Hubbell Wiring Device - Hubbell 5352AAL Receptacle, DUP SB, HUBPRO, 20A 125V, SF, AL

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585109794

  • Amperage - 20 Amp

  • Applications - Heavy Duty

  • Catalog Number - 5352AAL

  • Color - Almond

Packaging

  • 1 ea

EAN

00783585109794

Part #

169698

Catalog #

5352AAL

Commercial reference

5352AAL

12-Digit UPC:

783585109794

Amperage:

20 Amp

Applications:

Heavy Duty

Catalog Number:

5352AAL

Color:

Almond

Conductor Size:

14-12 AWG

Country of Origin:

USA

Current:

20 Amp

ERP_productname:

HUB 5352AAL RCPT, DUP SB, HUBPRO, 20A 125V, SF , AL

Family Brand Name:

Hubbell Wiring Device-Kellems

Finish:

Smooth

Grade:

Industrial

Heights:

1.09 Inch

Horsepower:

1 hp

Length:

3.28 Inch

Material:

Thermoplastic

Mounting Type:

Screw

NEMA:

5-20R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard Sized

Sub Brand:

Straight Blade

Tc Connection:

Back and Side Wired

Type:

Traditional, Heavy Duty

Voltage:

125 Volt

Wattage:

2500 Watt

Widths:

1.41 in

Wire Size:

14-12 AWG

SoneparProductId:

SKU_US_29083332

Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Almond, Single Pack. Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 V-2; Environmental - Operating Temperatures - Maximum continuous 75±C, minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only; Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498 - Industry Standard(s): Certified to CSA 22.2, No. 42 File 285; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL File No. E2186 - Features: Slender/compact design; Self Grounding; Smooth face; Triple wipe contacts
