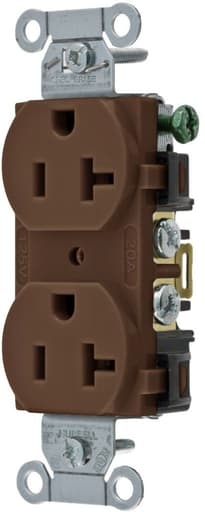

Hubbell Wiring Device - Hubbell 5352AB 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Brown Straight Blade Duplex Receptacle

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585109756

  • Amperage - 20 Amp

  • Applications - Hubbell-Pro Heavy Duty Applications

  • Catalog Number - 5352AB

  • Color - Brown

Packaging

  • 1 ea

EAN

00783585109756

Part #

190541

Catalog #

5352AB

Commercial reference

5352AB

12-Digit UPC:

783585109756

Amperage:

20 Amp

Applications:

Hubbell-Pro Heavy Duty Applications

Catalog Number:

5352AB

Color:

Brown

Conductor Size:

14-12 AWG

Country of Origin:

China

Current:

20 Amp

ERP_productname:

HUB 5352AB 20A 125V DPLX RCPT

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Compact,Heavy Duty Specification,Slender

Heights:

1.09 Inch

Horsepower:

1 hp

Length:

3.28 Inch

Material:

Thermoplastic

Mounting Type:

Screw

NEMA:

5-20R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard

Sub Brand:

Straight Blade

Tc Connection:

Back and Side Wired

Type:

Traditional, Flat

Voltage:

125 Volt

Wattage:

2500 Watt

Widths:

1.41 in

Wire Size:

12-10 V

SoneparProductId:

SKU_US_25776951

Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Brown Features: Easy Installation, Easy Access Split Circuit Tab, Fork Terminal Capable, Self-Grounding Staple; Durable Construction, Nylon Face and Base; Sturdy Construction, Wrap Around Galvanized Steel Strap; Single Tab Break-Off Ears; Self-Grounding Staple; Easy Access Split Circuit Tab; Fork Terminal Capable; Oversized Terminal Screw; Permanently Marked Receptacles for Automatic Outlet Control System; These Receptacles are Embossed with the Universally Recognized Power Symbol and the Word \"Controlled\" Remains Clearly Visible after Installation - Additional Information: Power Rating 1 HP; Material Brass (Contact), Galvanized Steel (Strap); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94 V-2; Applicable Standard Federal Specification WC-596, NEMA WD-6
