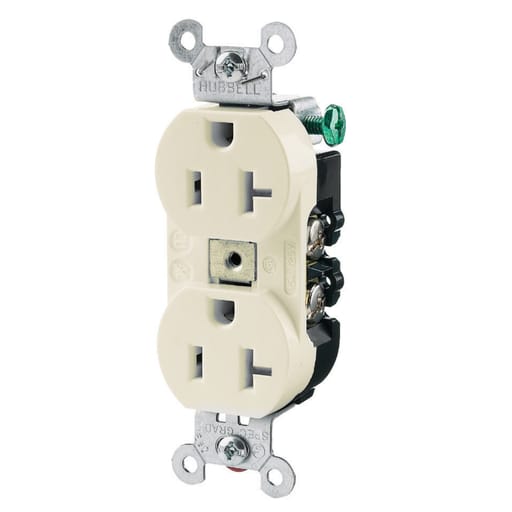

Hubbell Wiring Device - Hubbell 5352ALA 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Light Almond Straight Blade Duplex Receptacle

Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585127705
Amperage - 20 Amp
Applications - Heavy Duty
Catalog Number - 5352ALA
Color - Light Almond
Packaging
1 ea
EAN
00783585127705
Part #
158312
Catalog #
5352ALA
Commercial reference
5352ALA
12-Digit UPC:
783585127705
Amperage:
20 Amp
Applications:
Heavy Duty
Catalog Number:
5352ALA
Color:
Light Almond
Conductor Size:
14-12 AWG
Country of Origin:
China
Current:
20 Amp
ERP_productname:
HUB 5352ALA RCPT, DUP SB, HUBPRO, 20A 125V, SF , LA
Family Brand Name:
Hubbell Wiring Device-Kellems
Finish:
Smooth
Grade:
Industrial
Heights:
1.09 Inch
Horsepower:
1 hp
Length:
3.28 Inch
Material:
Thermoplastic
Mounting Type:
Screw
NEMA:
5-20R
Number of Phases:
1 Phase
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Size:
Standard Sized
Sub Brand:
Straight Blade
Tc Connection:
Back and Side Wired
Type:
Traditional, Heavy Duty
Voltage:
125 Volt
Wattage:
2500 Watt
Widths:
1.41 in
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_26682638
