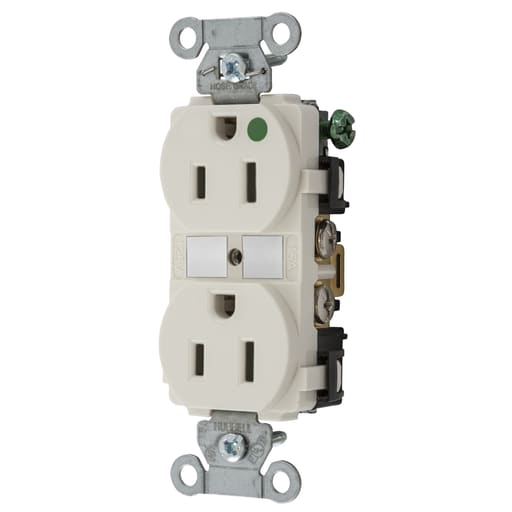

Hubbell Wiring Device - Hubbell 8200LA Straight Blade Device, Duplex Receptacle, Hubbell-Pro, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Light Almond

CopyCopy
Hubbell Wiring Device - Hubbell 8200LA Straight Blade Device, Duplex Receptacle, Hubbell-Pro, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Light Almond

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585197470

  • Amperage - 15 Amp

  • Applications - Hubbell-Pro Heavy Duty Hospital Grade

  • Catalog Number - 8200LA

  • Color - Light Almond

Packaging

  • 1 ea

EAN

00783585197470

Part #

416184

Catalog #

8200LA

Commercial reference

8200LA

12-Digit UPC:

783585197470

Amperage:

15 Amp

Applications:

Hubbell-Pro Heavy Duty Hospital Grade

Catalog Number:

8200LA

Color:

Light Almond

Conductor Size:

14-10 AWG

Country of Origin:

USA

Current:

15 Amp

ERP_productname:

HUB 8200LA HUBBELL-PRO HG DPLX 15A/125V LA

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Hospital

Heights:

1.15 Inch

Horsepower:

0.5 hp

Length:

3.28 Inch

Material:

Nylon

NEMA:

5-15R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

3.28 in x 1.57 in x 1.15 in

Sub Brand:

Straight Blade Devices

Tc Connection:

Screw Terminals

Type:

Receptacle

Voltage:

125 Volt

Wattage:

1875 Watt

Widths:

1.57 in

Wire Size:

14-10 AWG

SoneparProductId:

SKU_US_89543781

Straight Blade Devices, Duplex Receptacle, Hubbell-Pro, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Light Almond Industry Standard(s): Certified to CSA, C22.2, No. 42 File 285; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186 - Features: Triple wipe contacts; High impact resistant face with circuit I.D. marking area; Steel mounting strap - Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94V-2; Environmental - Operating Temperature - Maximum continuous 75±C, minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only; Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
