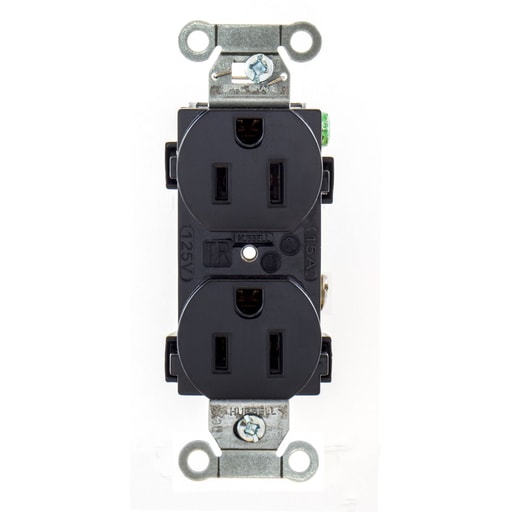

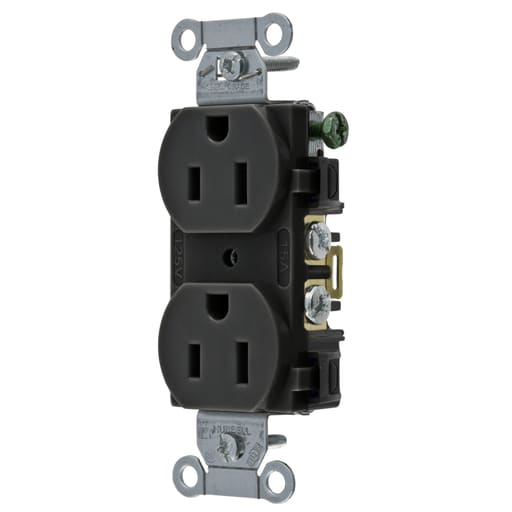

Hubbell Wiring Device - Hubbell BR15-BLK Black 15A 125V Duplex Receptacle. Commercial Spec Grade

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585109664

  • Amperage - 15 Amp

  • Applications - Commercial Specification Grade

  • Catalog Number - BR15BLK

  • Color - Black

Packaging

  • 1 ea

EAN

00783585109664

Part #

224731

Catalog #

BR15BLK

Commercial reference

BR15BLK

12-Digit UPC:

783585109664

Amperage:

15 Amp

Applications:

Commercial Specification Grade

Catalog Number:

BR15BLK

Color:

Black

Conductor Size:

14-12 AWG

Country of Origin:

China

Current:

15 Amp

ERP_productname:

HUB BR15BLK RCPT, DUP SB, COM GRD, 15A 125V, B/S, BK

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Specification

Heights:

1.07 Inch

Horsepower:

0.5 hp

Length:

3.28 Inch

Material:

Thermoplastic

Mounting Type:

Screw

NEMA:

5-15R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard

Sub Brand:

Straight Blade

Tc Connection:

Back & Side Wired

Type:

Traditional

Voltage:

125 Volt

Wattage:

1875 Watt

Widths:

1.57 in

Wire Size:

14-10

SoneparProductId:

SKU_US_28963975

Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Black Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 V-2; Environmental - Operating Temperatures - Maximum continuous 75±C, minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only; Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA - Industry Standard(s): Certified to CSA 22.2, No. 42; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186 - Features: Easy access split circuit tab; Nylon face and base; Wrap-around galvanized steel strap; Triple wipe contacts
