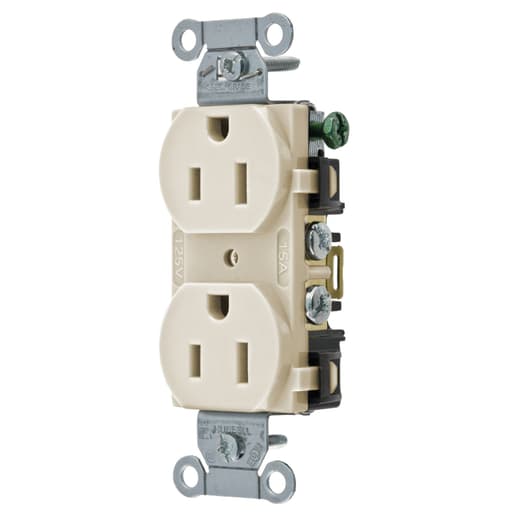

Hubbell Wiring Device - Hubbell BR15AL Receptacle, DUP SB, COM GRD, 15A 125V, B/S, AL

Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585109022
Amperage - 15 Amp
Applications - Commercial Specification Grade
Catalog Number - BR15AL
Color - Almond
Packaging
1 ea
EAN
00783585109022
Part #
123303
Catalog #
BR15AL
Commercial reference
BR15AL
12-Digit UPC:
783585109022
Amperage:
15 Amp
Applications:
Commercial Specification Grade
Catalog Number:
BR15AL
Color:
Almond
Conductor Size:
14-12 AWG
Country of Origin:
China
Current:
15 Amp
ERP_productname:
HUB BR15AL RCPT, DUP SB, COM GRD, 15A 125V, B/S, AL
Family Brand Name:
Hubbell Wiring Device-Kellems
Grade:
Commercial Specification
Heights:
1.1 Inch
Horsepower:
0.5 hp
Length:
3.3 Inch
Material:
Nylon
Mounting Type:
Screw
NEMA:
5-15R
Number of Phases:
1 Phase
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Size:
Standard Sized
Sub Brand:
Straight Blade
Tc Connection:
Back and Side Wired
Type:
Traditional
Voltage:
125 Volt
Wattage:
1875 Watt
Widths:
1.34 in
Wire Size:
14-10 AWG
SoneparProductId:
SKU_US_73877359
