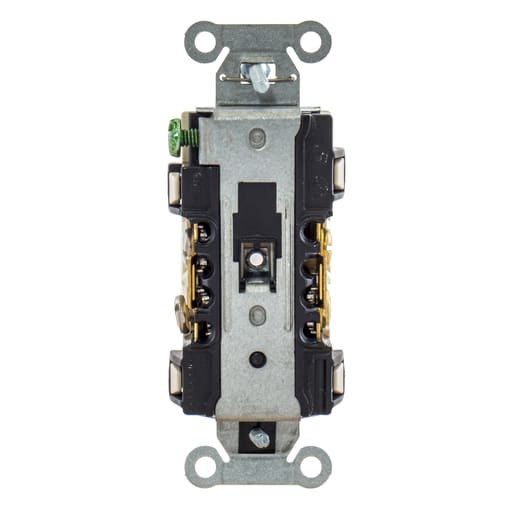

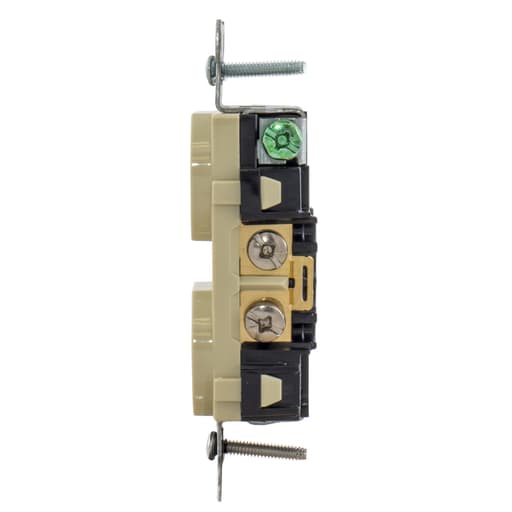

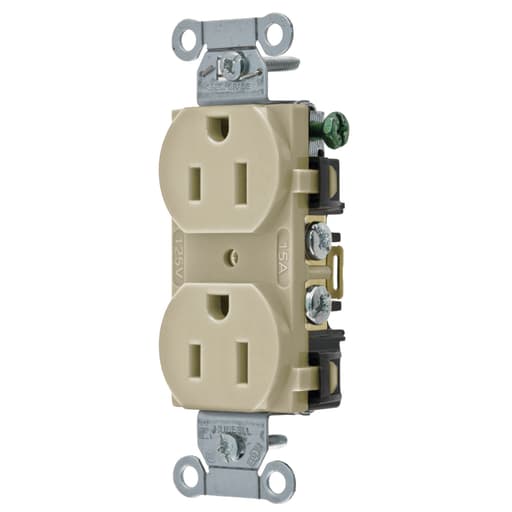

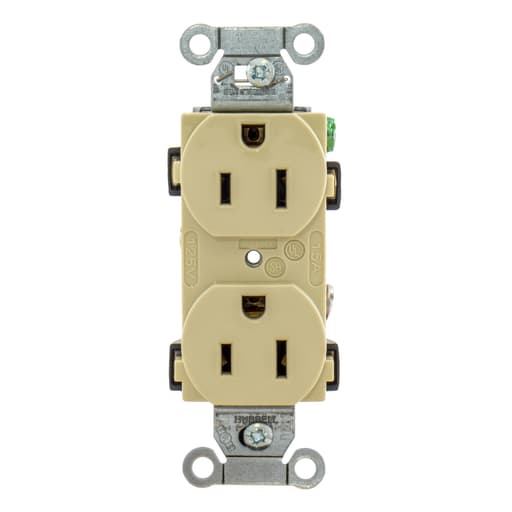

Hubbell Wiring Device - Hubbell BR15I 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Ivory Nylon Straight Blade Duplex Receptacle

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585834849

  • Amperage - 15 Amp

  • Applications - Commercial Specification Grade

  • Catalog Number - BR15I

  • Color - Ivory

Packaging

  • 1 ea

EAN

00783585834849

Part #

154585

Catalog #

BR15I

Commercial reference

BR15I

12-Digit UPC:

783585834849

Amperage:

15 Amp

Applications:

Commercial Specification Grade

Catalog Number:

BR15I

Color:

Ivory

Conductor Size:

14-12 AWG

Country of Origin:

China

Current:

15 Amp

ERP_productname:

HUB BR15I RECEPTACLE DUPLX STR BLADE COMM GRADE 15A 125V B/S IVORY

Enclosure Material:

Stainless Steel

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Specification

Heights:

1.1 Inch

Horsepower:

0.5 hp

Length:

3.3 Inch

Material:

Thermoplastic

Mounting Type:

Screw

NEMA:

5-15R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard

Sub Brand:

Straight Blade

Tc Connection:

Back and Side Wired

Type:

Traditional

Voltage:

125 Volt

Wattage:

1875 Watt

Widths:

1.34 in

Wire Size:

14-10

SoneparProductId:

SKU_US_25870842

Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory, Single Pack. Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 V-2; Environmental - Operating Temperatures - Maximum continuous 75±C, minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only; Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA - Features: Easy access split circuit tab; Self Grounding; Nylon face and base; Wrap-around galvanized steel strap; Triple wipe contacts - Industry Standard(s): Certified to CSA 22.2, No. 42; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186
