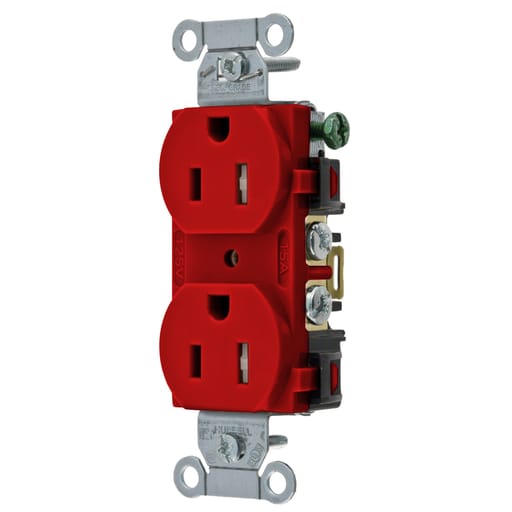

Hubbell Wiring Device - Hubbell BR15RTR TAMP RES, COM GRD, 15A 125V, 5-15R, RD

CopyCopy
Hubbell Wiring Device - Hubbell BR15RTR TAMP RES, COM GRD, 15A 125V, 5-15R, RD

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585148694

  • Amperage - 15 Amp

  • Applications - Commercial Grade

  • Catalog Number - BR15RTR

  • Color - Red

Packaging

  • 1 ea

EAN

00783585148694

Part #

184532

Catalog #

BR15RTR

Commercial reference

BR15RTR

12-Digit UPC:

783585148694

Amperage:

15 Amp

Applications:

Commercial Grade

Catalog Number:

BR15RTR

Color:

Red

Conductor Size:

14-10 AWG

Country of Origin:

China

Current:

15 Amp

ERP_productname:

HUB BR15RTR TAMP RES, COM GRD, 15A 125V, 5-15R, RD

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Commercial

Heights:

3.28 Inch

Horsepower:

0.5 hp

Length:

1.32 Inch

Material:

Nylon

NEMA:

5-15R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard Sized Product

Sub Brand:

Straight Blade

Tc Connection:

Terminal Screws

Type:

Duplex

Voltage:

125 Volt

Wattage:

1875 Watt

Widths:

0.83 in

Wire Size:

14-10 AWG

SoneparProductId:

SKU_US_89543768

Straight Blade Devices, Receptacles, Tamper-Resistant Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Red, Single Pack. Features: Tamper-resistant shutter complies with national electrical code requirements; Smooth face; Wrap-around galvanized steel straps; Triple wipe contacts - Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 V-2; Environmental - Operating Temperatures - Maximum continuous 75±C minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only; Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA - Industry Standard(s): Certified to CSA C22.2, No. 42; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186
