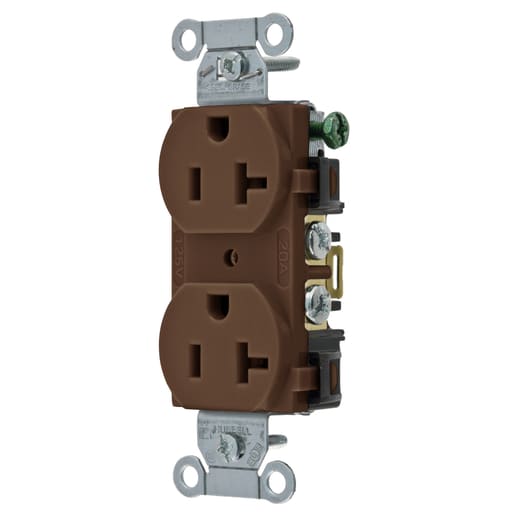

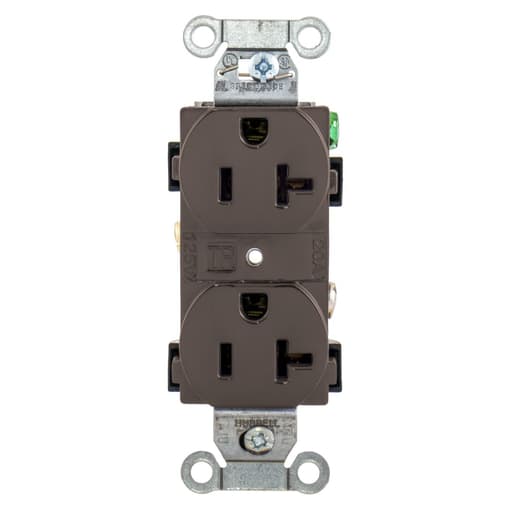

Hubbell Wiring Device - Hubbell BR20 Brown 20A 125V Duplex Receptacle. Commercial Spec Grade

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585144009

  • Amperage - 20 Amp

  • Applications - Commercial Specification Grade

  • Catalog Number - BR20

  • Color - Brown

Packaging

  • 1 ea

EAN

00783585144009

Part #

208894

Catalog #

BR20

Commercial reference

BR20

12-Digit UPC:

783585144009

Amperage:

20 Amp

Applications:

Commercial Specification Grade

Catalog Number:

BR20

Color:

Brown

Conductor Size:

14-12 AWG

Country of Origin:

China

Current:

20 Amp

ERP_productname:

HUB BR20 RCPT DUP SB COM GRD 20A 125V B/S BR

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Specification

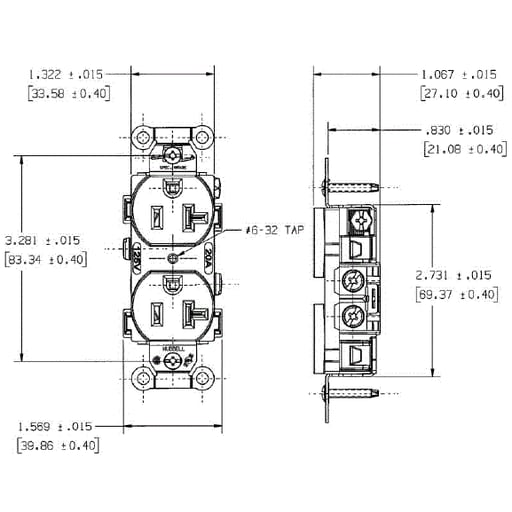

Heights:

3.28 Inch

Horsepower:

1 hp

Length:

1.32 Inch

Material:

Thermoplastic

Mounting Type:

Screw

NEMA:

5-20R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard

Sub Brand:

Straight Blade

Tc Connection:

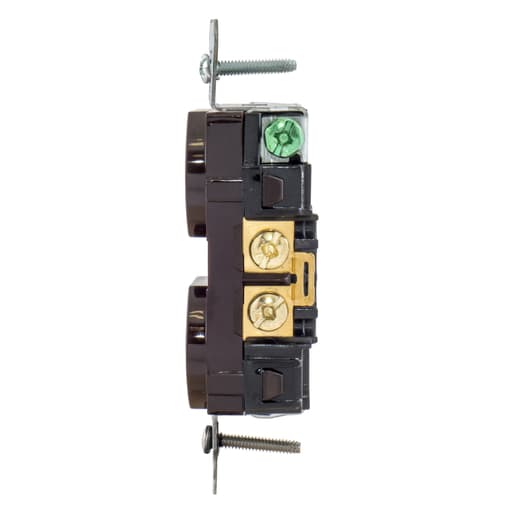

Back and Side Wired

Type:

Traditional

Voltage:

125 Volt

Wattage:

2500 Watt

Widths:

0.83 in

Wire Size:

12-10 AWG

SoneparProductId:

SKU_US_30868131

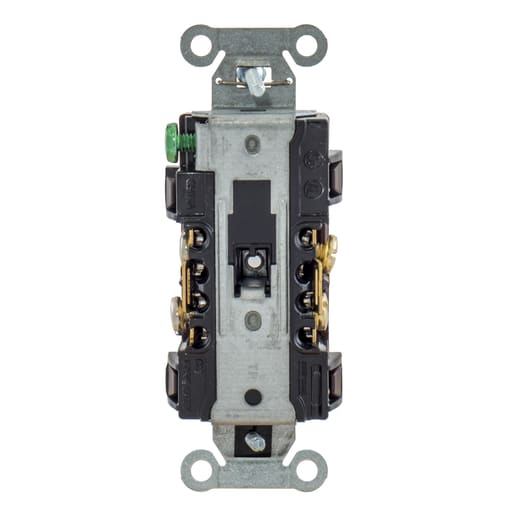

Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Brown, Single Pack. Industry Standard(s): Certified to CSA 22.2, No. 42; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186 - Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 V-2; Environmental - Operating Temperatures - Maximum continuous 75±C minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only; Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA - Features: Easy access split circuit tab; Nylon face and base; Self Grounding; Wrap-around galvanized steel strap; Triple wipe contacts
