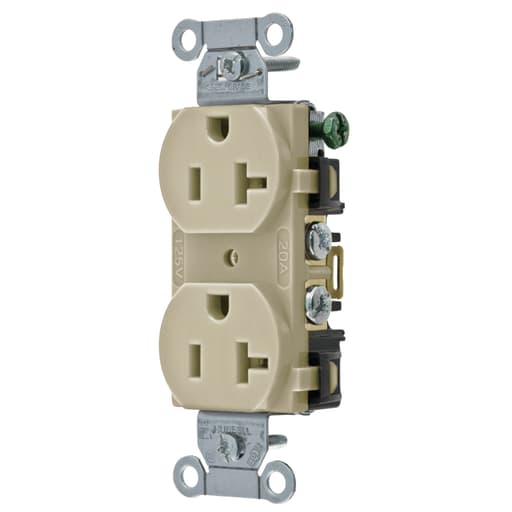

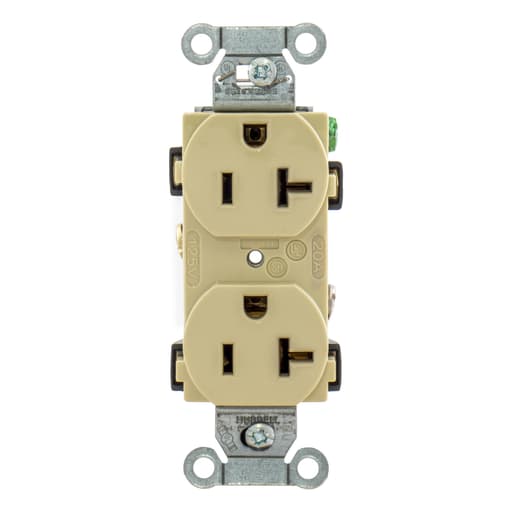

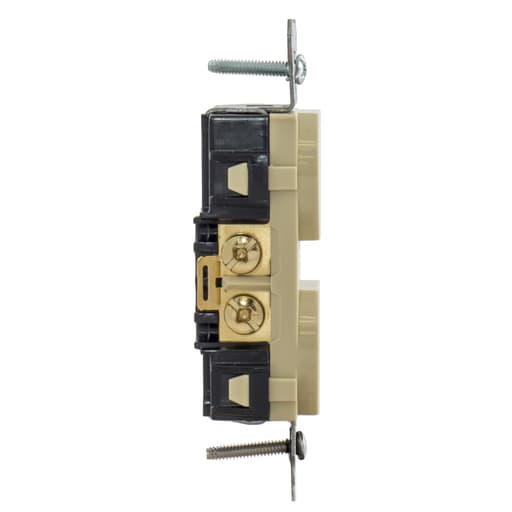

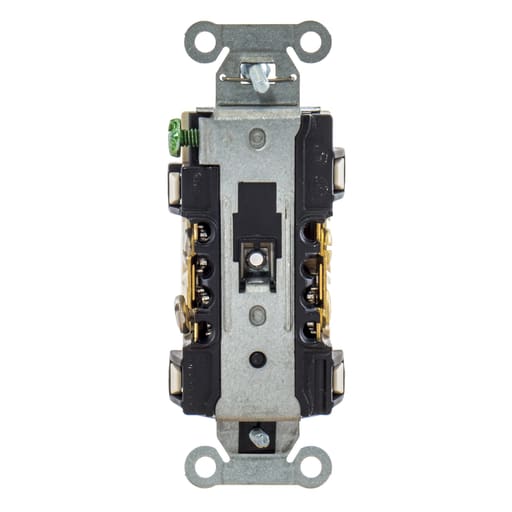

Hubbell Wiring Device - Hubbell BR20-I Ivory 20A 125V Duplex Receptacle. Commercial Spec Grade

Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585834887
Amperage - 20 Amp
Applications - Commercial Specification Grade
Catalog Number - BR20I
Color - Ivory
Packaging
1 ea
EAN
00783585834887
Part #
207224
Catalog #
BR20I
Commercial reference
BR20I
12-Digit UPC:
783585834887
Amperage:
20 Amp
Applications:
Commercial Specification Grade
Catalog Number:
BR20I
Color:
Ivory
Conductor Size:
14-12 AWG
Country of Origin:
China
Current:
20 Amp
ERP_productname:
HUB BR20I RCPT DUP SB COM GRD 20A 125V B/S IV
Family Brand Name:
Hubbell Wiring Device-Kellems
Grade:
Commercial Specification
Heights:
3.28 Inch
Horsepower:
1 hp
Length:
1.32 Inch
Material:
Nylon
Mounting Type:
Screw
NEMA:
5-20R
Number of Phases:
1 Phase
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Size:
Standard Sized
Sub Brand:
Straight Blade
Tc Connection:
Back and Side Wired
Type:
Traditional
Voltage:
125 Volt
Wattage:
2500 Watt
Widths:
0.83 in
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_25358146
