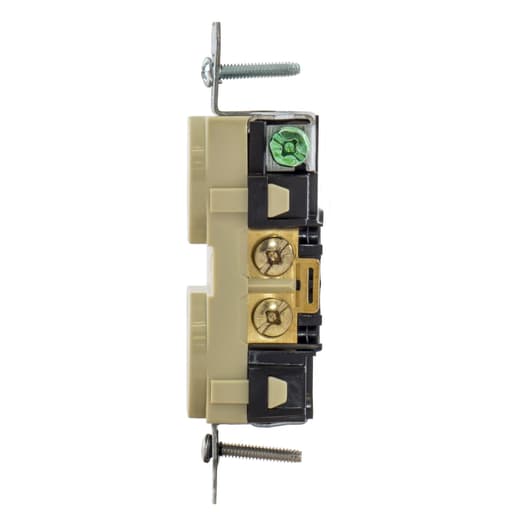

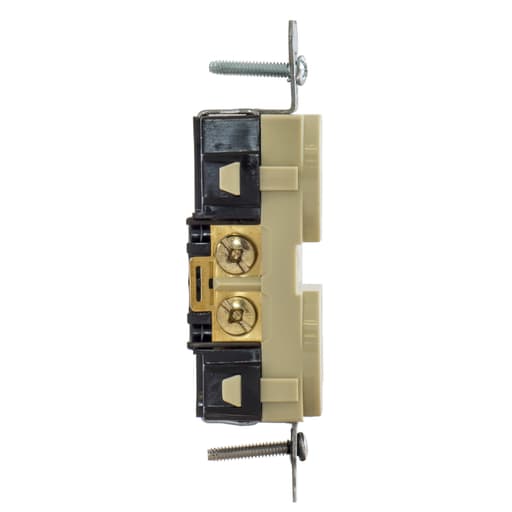

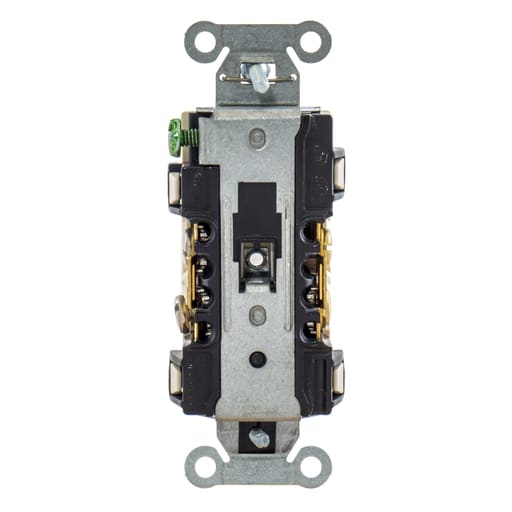

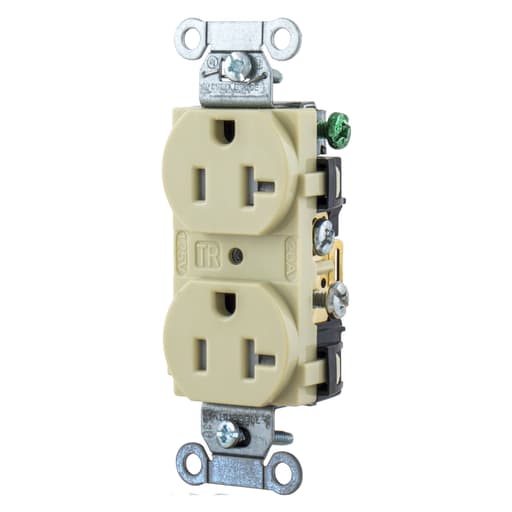

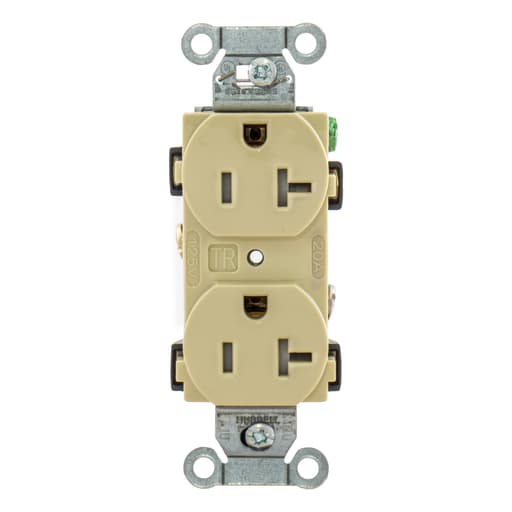

Hubbell Wiring Device - Hubbell BR20-ITR Ivory 20A 125V Duplex Receptacle - Tamper Resistant. Commercial Spec Grade

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585144153

  • Amperage - 20 Amp

  • Applications - Commercial Specification Grade

  • Catalog Number - BR20ITR

  • Color - Ivory

Packaging

  • 1 ea

EAN

00783585144153

Part #

223306

Catalog #

BR20ITR

Commercial reference

BR20ITR

12-Digit UPC:

783585144153

Amperage:

20 Amp

Applications:

Commercial Specification Grade

Catalog Number:

BR20ITR

Color:

Ivory

Conductor Size:

14-12 AWG

Country of Origin:

China

Current:

20 Amp

ERP_productname:

HUB BR20ITR TAMP RES COM GRD 20A 125V 5-20R IV

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Commercial Specification

Heights:

3.28 Inch

Horsepower:

1 hp

Length:

1.32 Inch

Material:

Nylon

Mounting Type:

Screw, Recessed/Flush

NEMA:

5-20R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard Sized

Sub Brand:

Straight Blade

Tc Connection:

Back and Side Wired

Type:

Traditional, Tamper-Resistant

Voltage:

125 Volt

Wattage:

2500 Watt

Widths:

1.47 in

Wire Size:

12-10 AWG

SoneparProductId:

SKU_US_26558914

Straight Blade Devices, Receptacles, Tamper-Resistant Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Ivory, Single Pack. Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 V-2; Environmental - Operating Temperatures - Maximum continuous 75±C minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only; Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA - Industry Standard(s): Certified to CSA C22.2, No. 42; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186 - Features: Tamper-resistant shutter complies with national electrical code requirements; Smooth face; Wrap-around galvanized steel straps; Triple wipe contacts
