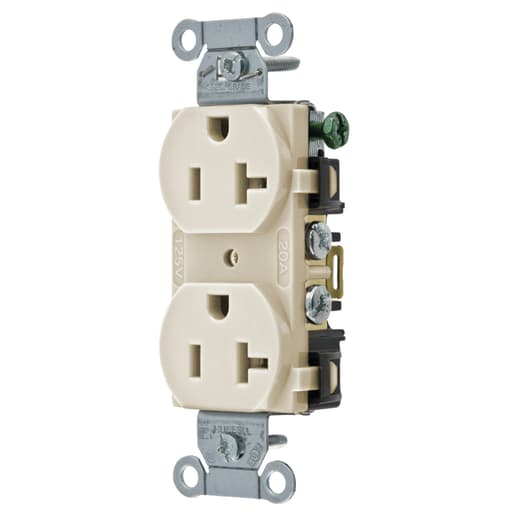

Hubbell Wiring Device - Hubbell BR20AL Receptacle, DUP SB, COM GRD, 20A 125V, B/S, AL

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585109671

  • Amperage - 20 Amp

  • Applications - Commercial Specification Grade

  • Catalog Number - BR20AL

  • Color - Almond

Packaging

  • 1 ea

EAN

00783585109671

Part #

149870

Catalog #

BR20AL

Commercial reference

BR20AL

12-Digit UPC:

783585109671

Amperage:

20 Amp

Applications:

Commercial Specification Grade

Catalog Number:

BR20AL

Color:

Almond

Conductor Size:

14-12 AWG

Country of Origin:

China

Current:

20 Amp

ERP_productname:

HUB BR20AL RCPT, DUP SB, COM GRD, 20A 125V, B/S, AL

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Commercial Specification

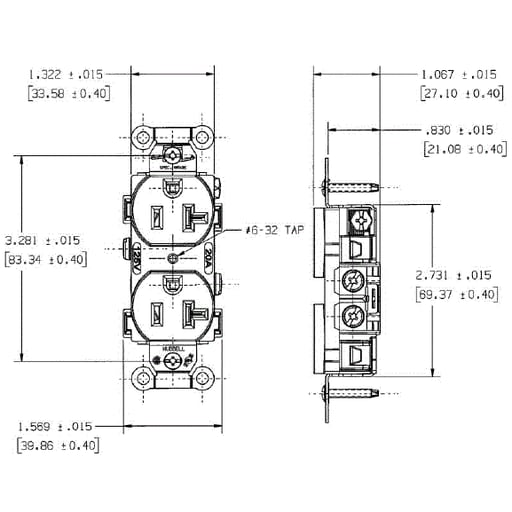

Heights:

3.28 Inch

Horsepower:

1 hp

Length:

1.32 Inch

Material:

Nylon

Mounting Type:

Screw

NEMA:

5-20R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard Sized

Sub Brand:

Straight Blade

Tc Connection:

Back and Side Wired

Type:

Traditional

Voltage:

125 Volt

Wattage:

2500 Watt

Widths:

0.83 in

Wire Size:

12-10 AWG

SoneparProductId:

SKU_US_29300065

Straight Blade Devices, Receptacles, Duplex, Commercial/IndustrialGrade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Almond, Single Pack. Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 V-2; Environmental - Operating Temperatures - Maximum continuous 75±C minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only; Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA - Features: Easy access split circuit tab; Nylon face and base; Self Grounding; Wrap-around galvanized steel strap; Triple wipe contacts - Industry Standard(s): Certified to CSA 22.2, No. 42; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186
