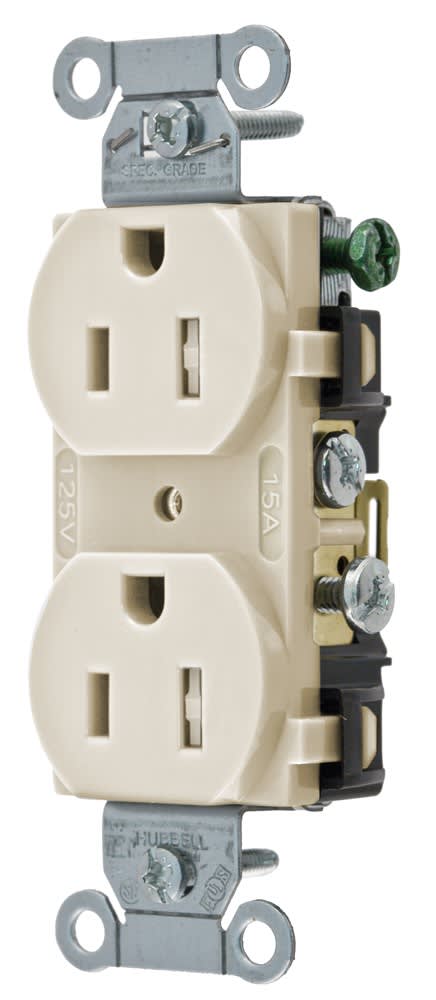

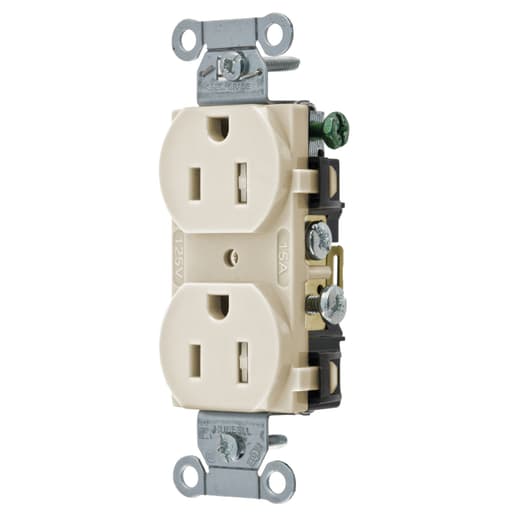

Hubbell Wiring Device - Hubbell CR15-ALTR Tamper Resistant Duplex Receptacle, Commercial Grade, 15A 125V - Almond

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585144191

  • Amperage - 15 Amp

  • Applications - Commercial Specification Grade

  • Catalog Number - CR15ALTR

  • Color - Almond

Packaging

  • 1 ea

EAN

00783585144191

Part #

162405

Catalog #

CR15ALTR

Commercial reference

CR15ALTR

12-Digit UPC:

783585144191

Amperage:

15 Amp

Applications:

Commercial Specification Grade

Catalog Number:

CR15ALTR

Color:

Almond

Conductor Size:

14-10 AWG

Current:

15 Amp

ERP_productname:

HUB CR15ALTR TAMP RES, COM GRD, 15A 125V, 5-15R, AL

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Commercial

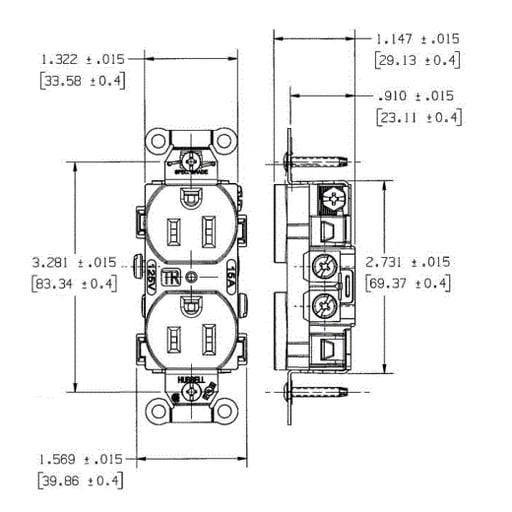

Heights:

3.28 Inch

Length:

1.32 Inch

Material:

Nylon

NEMA:

5-15R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard Sized Product

Sub Brand:

Straight Blade Devices

Tc Connection:

Back and Side Wired

Type:

Traditional Duplex

Voltage:

125 Volt

Wattage:

1875 Watt

Widths:

0.83 in

Wire Size:

14-10 AWG

SoneparProductId:

SKU_US_89252013

Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Almond, Single Pack. Features: Tamper-resistant shutter complies with national electrical code requirements; Tamper Resistant; Smooth face; Triple wipe contacts - Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 V-2; Environmental - Operating Temperatures - Maximum continuous 75±C minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only; Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA - Industry Standard(s): Certified to CSA, C22.2, No. 42; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186
