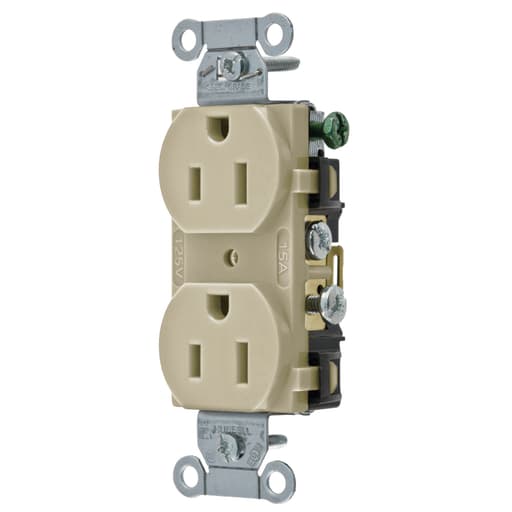

Hubbell Wiring Device - Hubbell CR15-I 15A 125V Duplex Receptacle, Commercial Spec Grade - Ivory

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585900056

  • Amperage - 15 Amp

  • Applications - Commercial Specification Grade

  • Catalog Number - CR15I

  • Color - Ivory

Packaging

  • 1 ea

EAN

00783585900056

Part #

212266

Catalog #

CR15I

Commercial reference

CR15I

12-Digit UPC:

783585900056

Amperage:

15 Amp

Applications:

Commercial Specification Grade

Catalog Number:

CR15I

Color:

Ivory

Conductor Size:

14-12 AWG

Country of Origin:

China

Current:

15 Amp

ERP_productname:

HUB CR15I IV DPLX RCPT 15A 125V

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Commercial/Specification

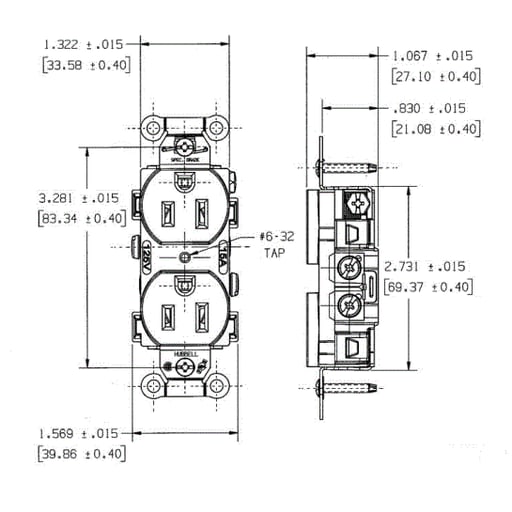

Heights:

3.28 Inch

Horsepower:

0.5 hp

Length:

1.32 Inch

Material:

Thermoplastic

Mounting Type:

Screw

NEMA:

5-15R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire Grounding

Size:

Standard

Sub Brand:

Straight Blade

Tc Connection:

Back and Side Wired

Type:

Traditional

Voltage:

125 Volt

Wattage:

1875 Watt

Widths:

0.83 in

Wire Size:

14-10

SoneparProductId:

SKU_US_25361695

Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory, Single Pack. Features: Easy access split circuit tab; Fork terminal capable; Smooth face; Triple wipe contacts - Industry Standard(s): Certified to CSA, C22.2, No. 42; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186 - Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 V-2; Environmental - Operating Temperatures - Maximum continuous 75±C minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only; Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
