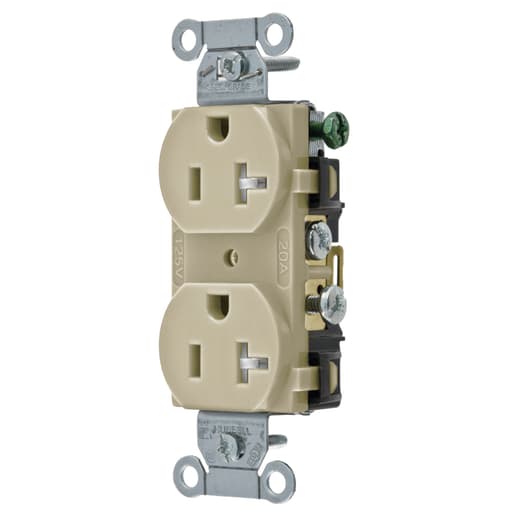

Hubbell Wiring Device - Hubbell CR20ITR 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Ivory Straight Blade Duplex Receptacle

Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585144290
Amperage - 20 Amp
Applications - Commercial Specification Grade
Catalog Number - CR20ITR
Color - Ivory
Packaging
1 ea
EAN
00783585144290
Part #
117414
Catalog #
CR20ITR
Commercial reference
CR20ITR
12-Digit UPC:
783585144290
Amperage:
20 Amp
Applications:
Commercial Specification Grade
Catalog Number:
CR20ITR
Color:
Ivory
Conductor Size:
14-12 AWG
Country of Origin:
China
Current:
20 Amp
ERP_productname:
HUB CR20ITR TAMP RES, COM GRD, 20A 125V, 5-20R, IV
Family Brand Name:
Hubbell Wiring Device-Kellems
Grade:
Commercial Specification
Heights:
3.28 Inch
Horsepower:
1 hp
Length:
1.32 Inch
Material:
Nylon
Mounting Type:
Screw
NEMA:
5-20R
Number of Phases:
1 Phase
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Size:
Standard Sized
Sub Brand:
Straight Blade
Tc Connection:
Back and Side Wired
Type:
Traditional, Tamper-Resistant, Standard Size
Voltage:
125 Volt
Wattage:
2500 Watt
Widths:
1.14 in
Wire Size:
14-10 AWG
SoneparProductId:
SKU_US_25337716
