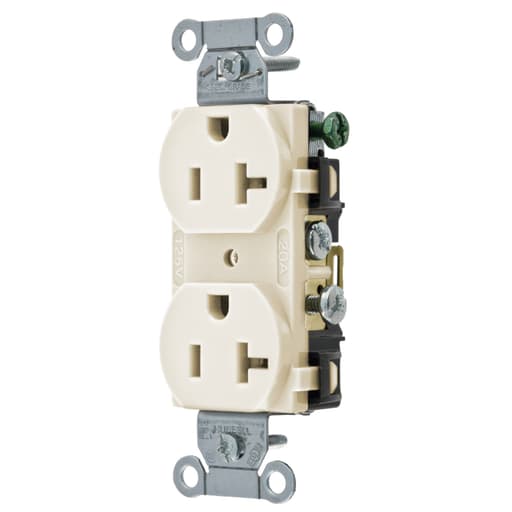

Hubbell Wiring Device - Hubbell CR20LA 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Light Almond Straight Blade Duplex Receptacle

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585127613

  • Amperage - 20 Amp

  • Applications - Commercial Specification Grade

  • Catalog Number - CR20LA

  • Color - Light Almond

Packaging

  • 1 ea

EAN

00783585127613

Part #

161996

Catalog #

CR20LA

Commercial reference

CR20LA

12-Digit UPC:

783585127613

Amperage:

20 Amp

Applications:

Commercial Specification Grade

Catalog Number:

CR20LA

Color:

Light Almond

Conductor Size:

14-12 AWG

Country of Origin:

China

Current:

20 Amp

ERP_productname:

HUB CR20LA DUP RCPT, COMM GRADE 20A 125V, 5-20R, LA

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Commercial Specification

Heights:

3.28 Inch

Horsepower:

1 hp

Length:

1.32 Inch

Material:

Nylon

Mounting Type:

Screw

NEMA:

5-20R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard Sized

Sub Brand:

Straight Blade

Tc Connection:

Back and Side Wired

Type:

Traditional, Standard Size

Voltage:

125 Volt

Wattage:

2500 Watt

Widths:

0.83 in

Wire Size:

12-10 AWG

SoneparProductId:

SKU_US_25594856

Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Light Almond, Single Pack. Industry Standard(s): Certified to CSA, C22.2, No. 42; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186 - Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 V-2; Environmental - Operating Temperatures - Maximum continuous 75±C minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only; Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA - Features: Easy access split circuit tab; Fork terminal capable; Smooth face; Triple wipe contacts
